Description
Highlights

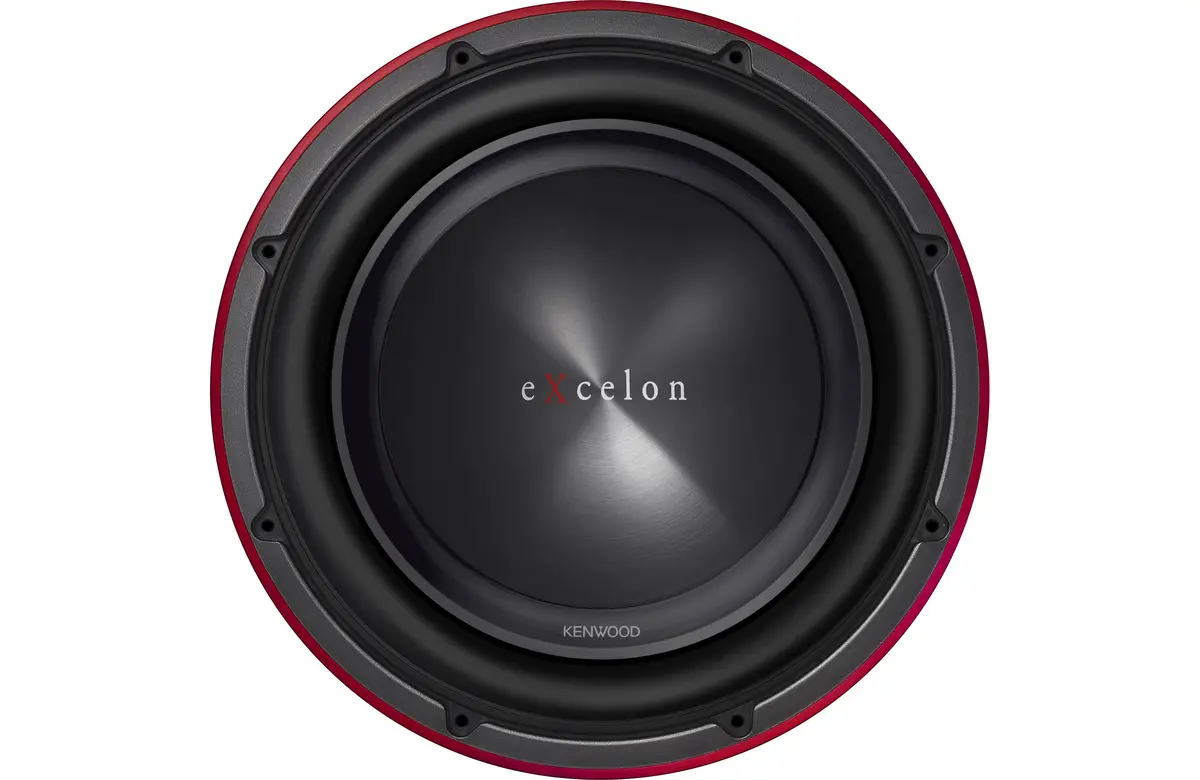

- 12″ 4-ohm component subwoofer
- 2-piece polypropylene cone with rubber surround
- Power handling: 500 watts RMS (2000 watts peak)
- Frequency response: 26-300 Hz
- Mounting depth: 5-11/16″
- Sealed box volume: 1.25 cubic feet
- Ported box volume: 1.5 cubic feet
- Grille sold separately
- Warranty: 2 years
Features
Sealed Enclosure Applications: Kenwood recommends a sealed enclosure volume of 1.25 ft³ (0.8 ft³ to 1.8 ft³ acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Enclosure Applications: Kenwood recommends a ported enclosure volume of 1.5 ft³ (1.2 ft³ to 2 ft³ acceptable) with a 12¾” wide x 1⅜” tall x 29″ long slot port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. However, this efficiency comes at the expense of very low frequency output.
Spring Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10-gauge.
Additional Measurements: When mounted without the trim ring, the sub has these measurements:
- Mounting Height: 0.54″
- Flange Height: 0.196″
- Frame Diameter: 12.54″
Specifications
| Size | 12 -inch |
| Impedance | 4 ohms |
| Cone Material | Polypropylene over Paper |
| Surround Material | Urethane |
| Ideal Sealed Box Volume (cubic feet) | 1.25 |
| Ideal Ported Box Volume (cubic feet) | 1.5 |
| Sensitivity | 83 dB at 1 watt |
| Frequency Response | 26 – 300 Hz |
| Max RMS Power Handling | 500 |
| Peak Power Handling (Watts) | 2000 |
| Top Mount Depth (inches) | 5 7/8 |
| Cutout Diameter or Length (inches) | 10 15/16 |
| Vas (liters) | 114 |
| Fs (Hz) | 20.5 |
| Qts | 0.268 |
| Xmax (millimeters) | 7.8 |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
