Description
Highlights

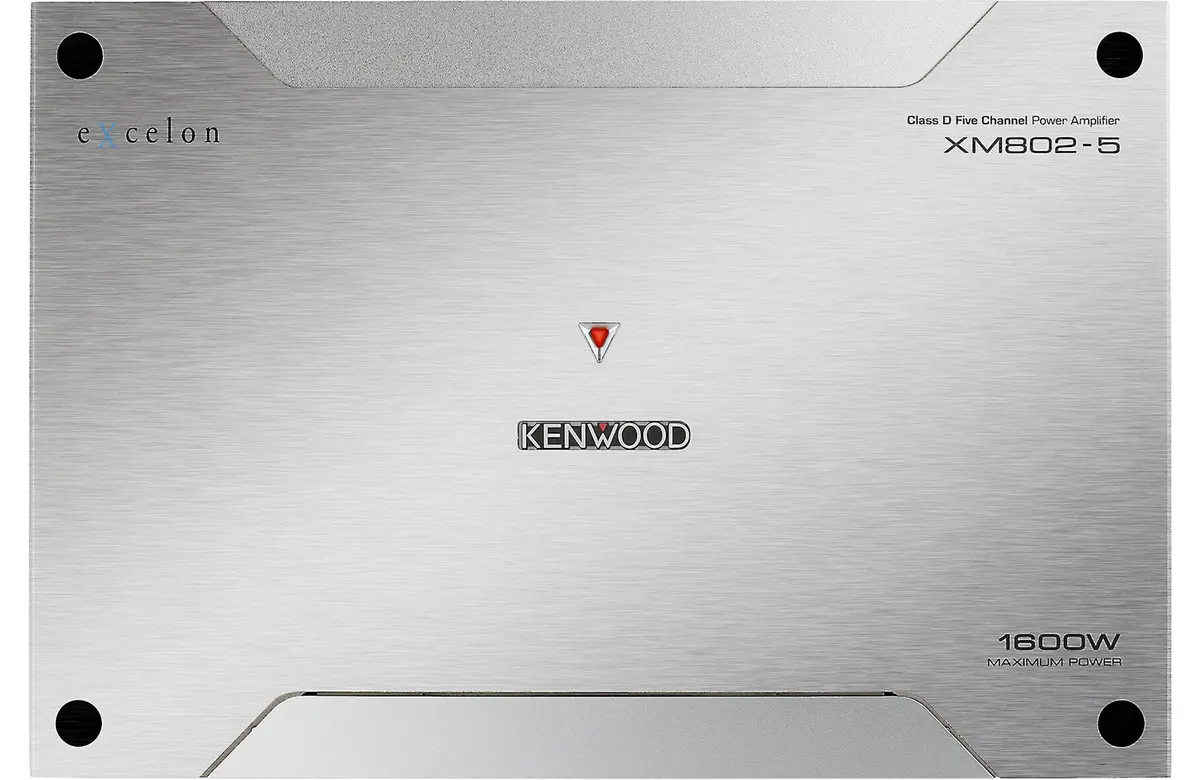

- 5-channel car amplifier
- 50 watts RMS x 4 + 300 watts x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- Class D amp technology
- separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
- variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
- variable bass boost on sub channel (0-18 dB at 40 Hz)
- optional wired remote control available for sub channel
Features
| RMS Power Output (Watts x Channels) |
50 x 4 |
| Frequency Response at Rated RMS Power |
20-20k Hz |
| THD at Rated RMS Power |
1% |
| Signal to Noise Ratio |
80 dB |
| Input Voltage |
14.4v |
| Peak Power Output (Watts x Channels) |
— |
| Power at 2 Ohms (Watts x Channels) |
75 x 4 |
| Bridged Power (Watts x Channels) |
150 x 2 |
| Minimum Impedance Bridged |
4 |
| Minimum Impedance Unbridged |
2 |
Specifications
| Amplifier Class |
D |
| Low-Pass Crossover Frequency |
50-200 Hz |
| Low-Pass Slope (dB/octave) |
24 dB/octave |
| High-Pass Crossover Frequency |
50-200 Hz |
| High-Pass Slope (dB/octave) |
12 dB/octave |
| Bass Boost |
0-18 dB |
| Bass Boost Frequency |
40 Hz |
| Fan Cooled |
No |
| Fuse Rating |
90 |
| Speaker Level Inputs |
Yes |
| Preamp Outputs |
No |
| Height (inches) |
2-1/8 |
| Width (inches) |
9-13/16 |
| Depth (inches) |
6-3/4 |
| Parts Warranty |
2 Years |
| Labor Warranty |
2 Years |
Measurements
| Weight |
4.52 (lbs) |
| Width |
8.6 (in.) |
| Length |
11.7 (in.) |
| Height |
3.6 (in.) |
