Description
Highlights
- 6.92″ High Definition Monitor with Capacitive Touch Panel
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay®
- Wireless Mirroring for Smartphones
- SiriusXM Radio Ready
- iDatalink Maestro Ready
- 2 Camera Inputs
- HD Rear Camera Ready
- HDMI Input
- Built-in Bluetooth & Wi-Fi
- 3 Preouts 3V
Features
- SiriusXM Ready.
- 3-Way Crossover.
- 1 AV Input / 1 Video Output.
- iDatalink Maestro Ready.
- GPS Antenna.
- Bluetooth with Album Artwork Display.
- Customizable Home Screen and Background.

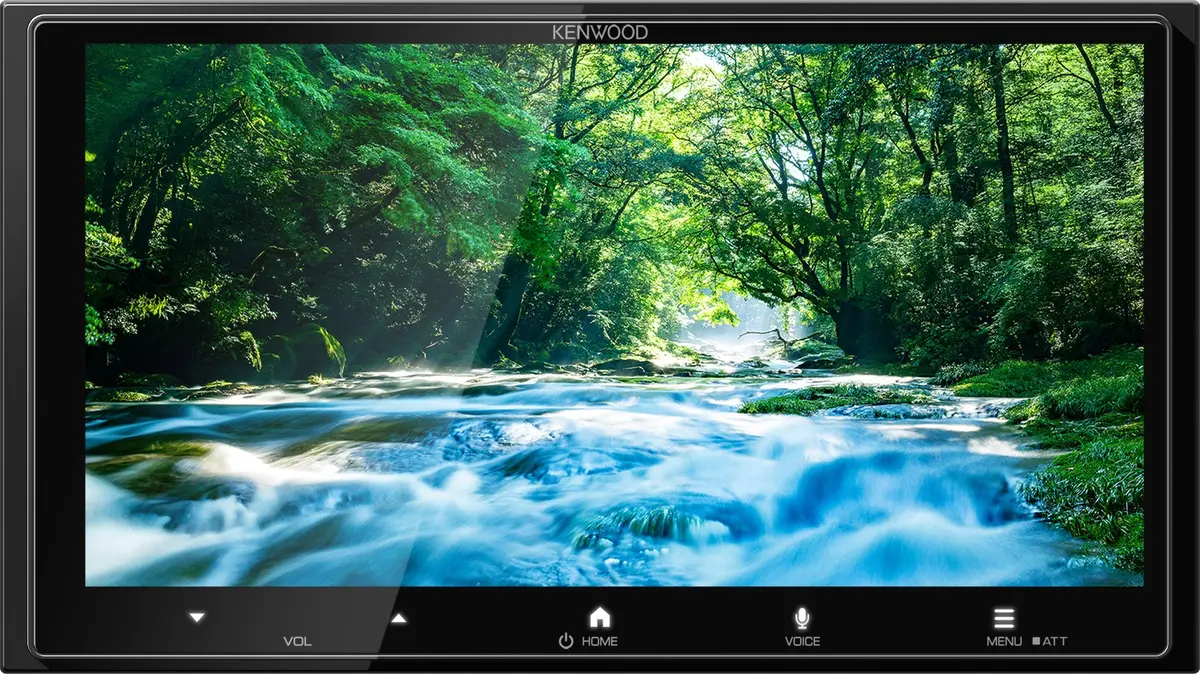

High Definition Display
— Overwhelming Power of Expression —
6.92″ Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
2.4x Resolution
of the WVGA Display
Smartphone Connectivity
Apple CarPlay® – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay
Android Auto ™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only.
Wireless Mirroring for Smartphones
By installing the “CarbitLink-EasyConnection” app, your smartphones seamlessly displayed on the receiver’s screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram.
*Selected smartphones only
HDMI Mirroring for Smartphones
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 6.92″ monitor. KCA-HD200 optional HDMI cable sold separately.
The Best Audio Experience
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.
*Available features vary by vehicle
Dual Camera Inputs and Parking Guide Lines
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
By installing a rear camera at the front of the vehicle and using the receiver’s Mirror function, you can invert the image and use it as a front camera.
HD Rear Camera Input
The optional CMOS-740HD camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.
WVGA Camera
HD Camera
Additional Features
SiriusXM Ready
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.
Specifications
| in Unit | Monitor Section |
Picture size | 6.92 inches (diagonal) |
|---|---|---|---|
| W x H | 156.48 (W) x 80.136 (H) mm | ||
| 6.16 (W) x 3.16 (H) inch | |||
| Display system | LCD panel | ||
| AHVA (advance hybrid view angle) | |||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 | ||
| 1280H x 720V x RGB | |||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section |
Connector Type | Type-A | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V = 2.1A | ||
| D/A Converter | 24 Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response | |||
| 192k Sampling | 20 – 20,000 Hz | ||
| 96k Sampling | 20 – 20,000 Hz | ||
| 48k Sampling | 20 – 20,000 Hz | ||
| 44.1k Sampling | 20 – 20,000 Hz | ||
| Total harmonic distortion 1 kHz | Typ: 0.05% | ||
| Signal to Noise ratio | Typ: 78 dB | ||
| Dynamic range | Typ: 89 dB | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4 GHz / 5 GHz ) | ||
| Channels | – | ||
| Auto (149,153,157,161 ch) | |||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | ||
| 11g: 54 Mbps / 11n: 130 Mbps / | |||
| 11ac: 390 Mbps | |||
| Output Power 2.4 GHz/SISO |
11b: 15 dBm + 3 / -2 dBm / | ||
| 11g: 14 dBm + 3 / -0 dBm / | |||
| 11n (20 MHz) : 13 dBm + 4 / -1 dBm / | |||
| Output Power 5 GHz/SISO |
11a: 12 dBm + 4 / -2d Bm / | ||
| 11n (20 MHz) : 12 dBm ± 4 dBm / 11n (40 MHz) : 12 dBm ± 4 dBm / |
|||
| 11ac (20 MHz) : 12 dBm ± 4 dBm / 11ac (40 MHz) : 12 dBm ± 4 dBm / 11ac (80 MHz) : 9 dBm ± 3 dBm / |
|||
| Bluetooth Section |
Technology | Bluetooth Ver5.3 | |
| Frequency | 2.402 – 2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m (32.8 ft) | ||
| Audio Codec | SBC / AAC | ||
| Multi Profile Support | Support | ||
| Profile | Support HFP v1.7 | ||
| Support SPP v1.2 | |||
| Support A2DP 1.4 | |||
| Support AVRCP v1.6 | |||
| Support PBAP v1.2 | |||
| HDMI | Connector Type | Type-D | |
| Input Resolution | 640×480 60 Hz 4:3 | ||
| 720×480 60 Hz 4:3 | |||
| 720×480 60 Hz 16:9 | |||
| 1280×720 60 Hz 16:9 | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section |
Graphics equalizer | ||
| BAND | 13 Band | ||
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | ||
| 2Way X’Over | |||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X’Over | |||
| HIGH PASS FILTER frequency | Through/250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | ||
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | |||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 – 20.01ft (0.03ft/tep) | ||
| Gain | -8 to 0 dB | ||
| Subwoofer Level | -50 to +10 dB | ||
| FM | Frequency Range | 87.9～107.9 (MHz) | |
| (Frequency step) | 200 kHz | ||
| Usable sensitivity | Typ: 8 dBf | ||
| S/N 30 dB | |||
| Frequency response | 100 Hz – 10 kHz | ||
| (±3.0dB) | |||
| S/N (dB) | Typ: 75dB | ||
| Stereo separation | Typ: 45 dB | ||
| AM | Frequency Range | 530～1700 (kHz) | |
| (Frequency step) | 10 kHz | ||
| Usable sensitivity | Typ: 29 dBu | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (RCA jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External video input level (Mini jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External audio max input level (RCA jacks) | – | ||
| External audio max input level (Mini jacks) | 1.1 VRMS / 10 kOhms | ||
| Video Input level (RCA jacks) | – | ||
| Video Output level (RCA jacks) | Typ: 100 IRE | ||
| Audio Output level (RCA jacks) | Typ: 3 V /10k ohms | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Output frequency band | 20 – 20,000 Hz | ||
| Preout level (V) | Typ: 3 V /10k ohms | ||
| Preout impedance (Ω) | =< 600 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| General | |||
| Chassis | Dimensions WxHxD | 178 mm x 100 mm x 109 mm | |
| 7 x 3-15/16 x 4-5/16 inch | |||
| Weight | 1.14 kg | ||
| 2.6 Ib | |||
