Description
JL Audio XDM200/2 2-Channel Marine Amplifier + JL Audio M3-650X-S-GW 6.5″ Marine Speaker Bundle
Amp Highlights
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier’s level can be adjusted directly from the driver’s seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Amp Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 2 |
| @ 2 Ω | 100 W RMS x 2 |
| Bridged @ 4Ω | 200 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 60 W RMS x 2 |
| @ 2 Ω | 90 W RMS x 2 |
| Bridged @ 4Ω | 180 W RMS x 1 |
General Specifications
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 20 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Security Cover for Controls | Yes |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 6.85 in / 174 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 3.75 lb / 1.70 kg |

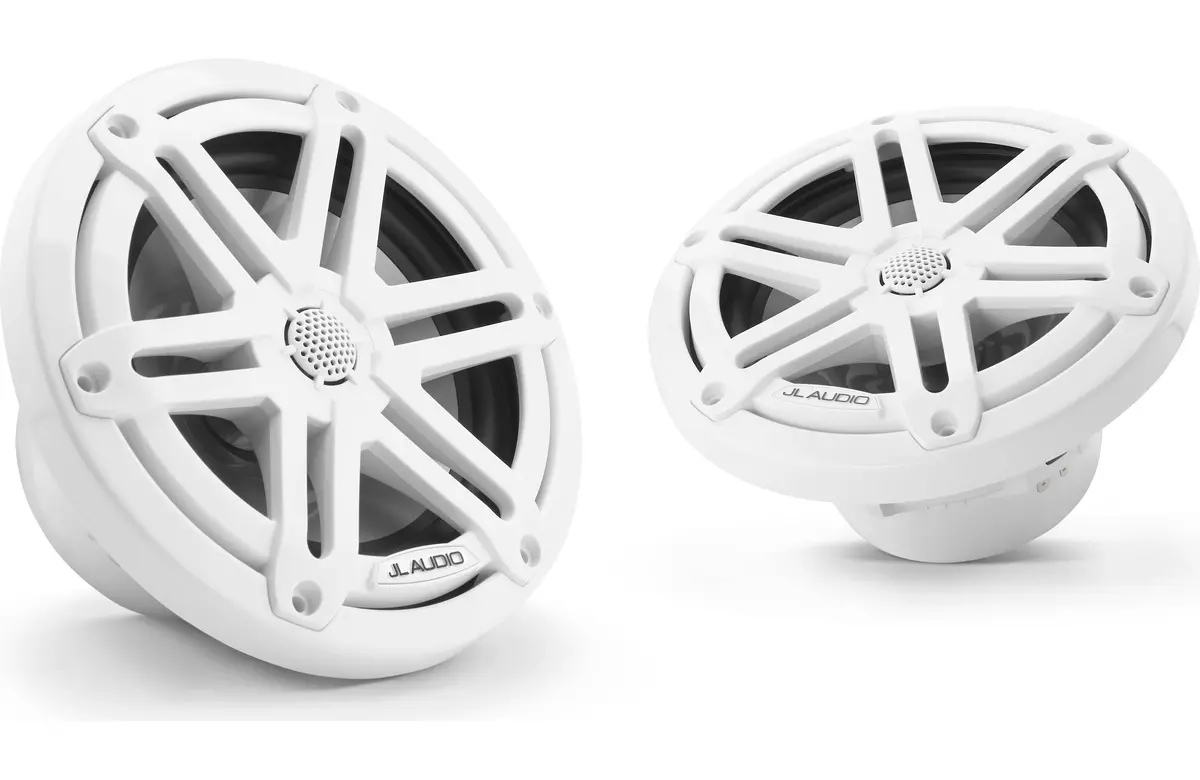

Speaker Highlights
- 6½” 2-way marine speakers (pair)
- Injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- ¾” silk dome tweeter
- UV- and corrosion-resistant polymer baskets and grilles
- Designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- Handles up to 60 watts RMS (225 watts peak power)
- Frequency response: 55-25,000 Hz
- Sensitivity: 89.5 dB
- Cutout diameter: 4.972
- Frame diameter: 6.9
- Mounting depth: 2.825
- Warranty: 2 years
Speaker Specifications
| Speaker Size | 6½” |
| Design | 2-way |
| Tweeter Design | ¾” Dome |
| Tweeter Composition | Silk |
| Woofer Composition | Mica-Filled IMPP |
| Woofer Surround | Rubber |
| Sensitivity | 89.5 dB at 1 watt |
| Frequency Response | 55 – 25k Hz |
| Max RMS Power Handling | 60 |
| Peak Power Handling (Watts) | 225 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2 ⅞” |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5″ |
