Description

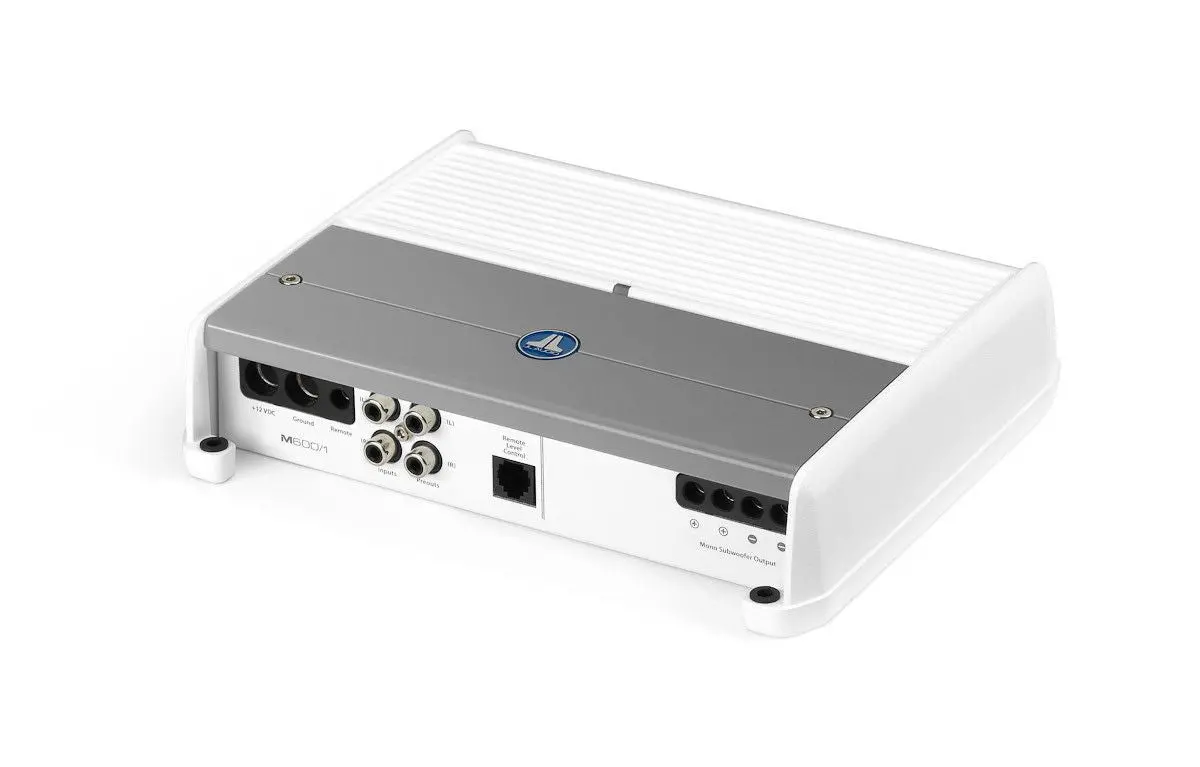

M600/1 – Factory Renewed with Limited Manufacturer’s Warranty
Highlights
Monoblock Class D Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω – 14.4V
This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don’t let the small size fool you, though… this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 Ω load (14.4V, 1% THD).
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 400 W RMS x 1 |
| @ 3 Ω | 500 W RMS x 1 |
| @ 2 Ω | 600 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 300 W RMS x 1 |
| @ 3 Ω | 400 W RMS x 1 |
| @ 2 Ω | 500 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| Frequency Response | 7 Hz – 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | 87 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | 59 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | 1000 / 50 Hz |
| Damping Factor @ 2 Ω | 500 / 50 Hz |
| THD+N @ Rated Power | 1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 100 mV – 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ (0 to +12 dB @ 45 Hz) | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (HD-RLC) |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 8.52 in / 216 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 4.6 lb / 2.06 kg |
