Description
JL Audio MX500/4 4-Channel Class D Marine Amplifier + JL Audio M3-650X-GW-I x2 Pairs 6.5″ Marine Speakers with LEDs
Amp Highlights
4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω – 14.4V
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Amp Features
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 70 W RMS x 4 |
| @ 2 Ω | 125 W RMS x 4 |
| Bridged @ 4Ω | 250 W RMS x 2 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 55 W RMS x 4 |
| @ 2 Ω | 90 W RMS x 4 |
| Bridged @ 4Ω | 180 W RMS x 2 |
Amp Specifications
| Frequency Response | 20 Hz – 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >88 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >70.5 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >92 / 50 Hz |
| Damping Factor @ 2 Ω | >43 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV – 4 V RMS (Low) to 750 mV – 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Amp Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 35 Hz – 300 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | No |
| Remote Level Modes | N/A |
| Channel Input Mode Switch | Yes (2/3/4 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Amp Physical Specifications
| Height (H) | 1.77 in / 45 mm |
| Width (W) | 9.33 in / 237 mm |
| Depth (D) | 4.50 in / 115 mm |
Speaker Highlights

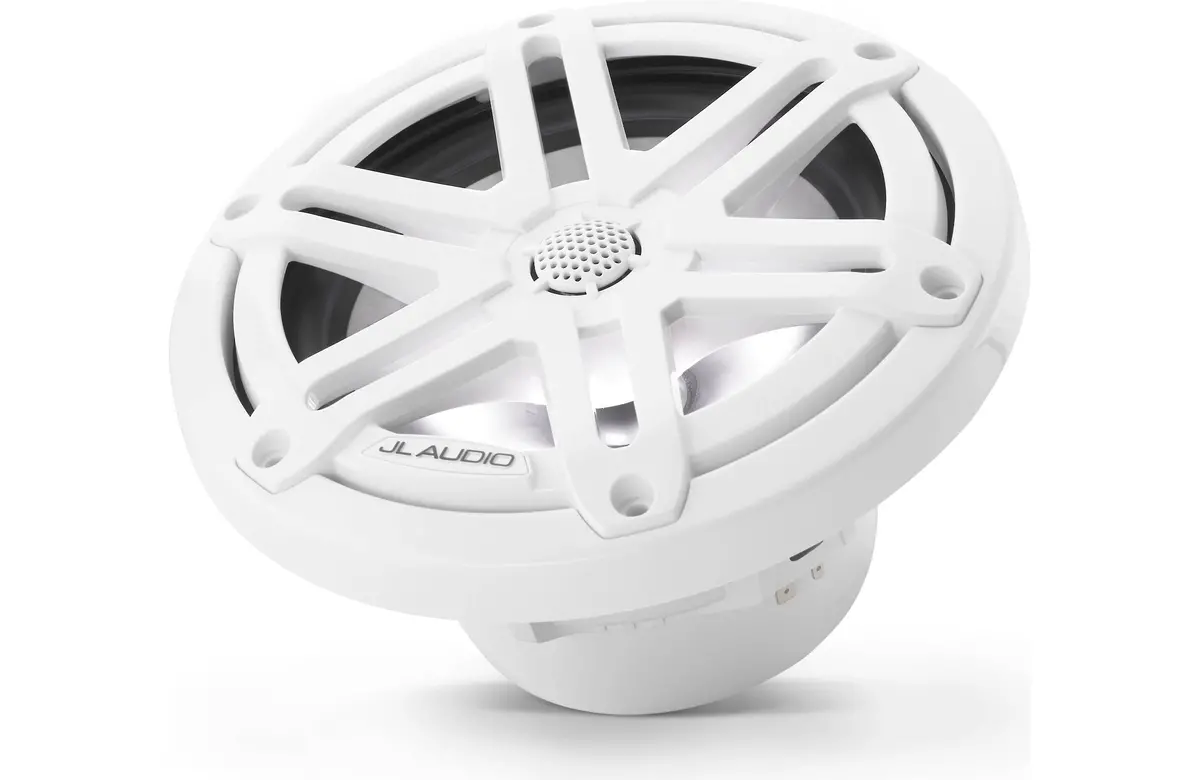

Great sound and life on the water. These 650X-S-Gw-i 6-1/2″ marine speakers combine durable, marine-ready design, outstanding audio performance, and the cool look of subtle blue lighting. Supplied with plenty of power, these speakers can overcome that wicked combination of wind, water, and engine noise. Plus, the built-in LED lighting brightens up any nighttime cruise.
The weatherproof cone is suspended in a durable synthetic rubber surround for great sound and long life, and the UV-resistant polymer basket surrounds and protects the entire structure. The 3/4″ treated silk dome tweeter renders brilliant highs, and it’s mounted directly to the white “Sport” grille for optimal sound radiation. The high-quality 2-way crossover mounted to the woofer basket ensures the woofer and tweeter work in perfect concert.
You can mount these sharp-looking 6-1/2″ speakers in your boat’s cockpit or bulkhead walls, either as stand-alone or in conjunction with a subwoofer.
Speaker Features
- 6-1/2″ 2-way marine speakers with blue LED lighting (pair)
- Injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- 3/4″ silk dome tweeter
- UV- and corrosion-resistant polymer baskets and grilles
- Designed for free-air applications (no enclosures needed)
- For best performance, speaker needs at least 2 cubic feet of airspace
Speaker Specification
- Handles up to 60 watts RMS (225 watts peak power)
- Frequency response: 55-25,000 Hz
- Sensitivity: 89.5 dB
- Cutout diameter: 4.972
- Frame diameter: 6.9
- Mounting depth: 2.825
- Warranty: 2 years
