JL Audio MV800/8i Marine Amp + Dual Pair of M6-770X-C-GWG 7.7″ Coaxial Speakers

Description

JL Audio MV800/8i 8-channel Class D Amplifier and JL Audio x2 Pairs M6-770X-C-GWGW 7.7″ Marine Speakers w/ Classic Grilles

Amp Highlights

• 8-channel marine amplifier
  • 75 watts RMS x 8 at 4 ohms
  • 100 watts RMS x 8 at 2 ohms
  • 200 watts RMS x 4 bridged at 4 ohms
• Class D amplifier design with NexD2™ switching amp technology
• cast-alloy chassis with marine-grade powder coat finish and corrosion-resistant hardware and connectors
• water-resistance rating IPX2 (can take an indirect splash) when mounted vertically with connections pointed downward
• 24-bit 96 kHz digital processing
• DSP adjustments and settings made with JL Audio’s TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
• 3 Project Levels of tuning: Basic, Advanced, Expert
• input routing and mixing
• adjustable gain controls with clip indication
• fully adjustable high-pass, low-pass, and bandpass filters
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
• phase and polarity control
• time alignment in 0.02 ms (1/4″) increments

Amp Features

Amplifier Class	D
Low-Pass Crossover Frequency	Via TüN Software
Low-Pass Slope (dB/octave)	Via TüN Software
High-Pass Crossover Frequency	Via TüN Software
High-Pass Slope (dB/octave)	Via TüN Software
Bass Boost	Via TüN Software
Bass Boost Frequency	Via TüN Software
Fan Cooled	No
Fuse Rating	80
Speaker Level Inputs	Yes
Preamp Outputs	2 pair
Height (inches)	2-1/8
Width (inches)	14
Depth (inches)	8-3/8
Parts Warranty	2 Years
Labor Warranty	2 Years

• 8 preamp/speaker-level inputs (configurable)
  • speaker wire to RCA adapter required for speaker-level input
  • high-level inputs — up to 16 volts RMS (about 60 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • differential-balanced inputs eliminate noise coming from your vehicle’s electrical system
• 4 processed analog preamp outputs (4V RMS)
• JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control with adapter
• USB connection for device running TüN app (6-foot cable included)
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and an 80-amp fuse recommended
• dimensions: 14″W x 2-1/8″H x 8-3/8″D
• weight: 5.6 lbs.
• warranty: 2 years

Amp Specifications

RMS Power Output (Watts x Channels)	75 x 8
Frequency Response at Rated RMS Power	20-20k Hz
THD at Rated RMS Power	1%
Signal to Noise Ratio	99 dB
Input Voltage	14.4v
Peak Power Output (Watts x Channels)	N/A
Power at 2 Ohms (Watts x Channels)	100 x 8
Bridged Power (Watts x Channels)	200 x 4
Minimum Impedance Bridged	4
Minimum Impedance Unbridged	2

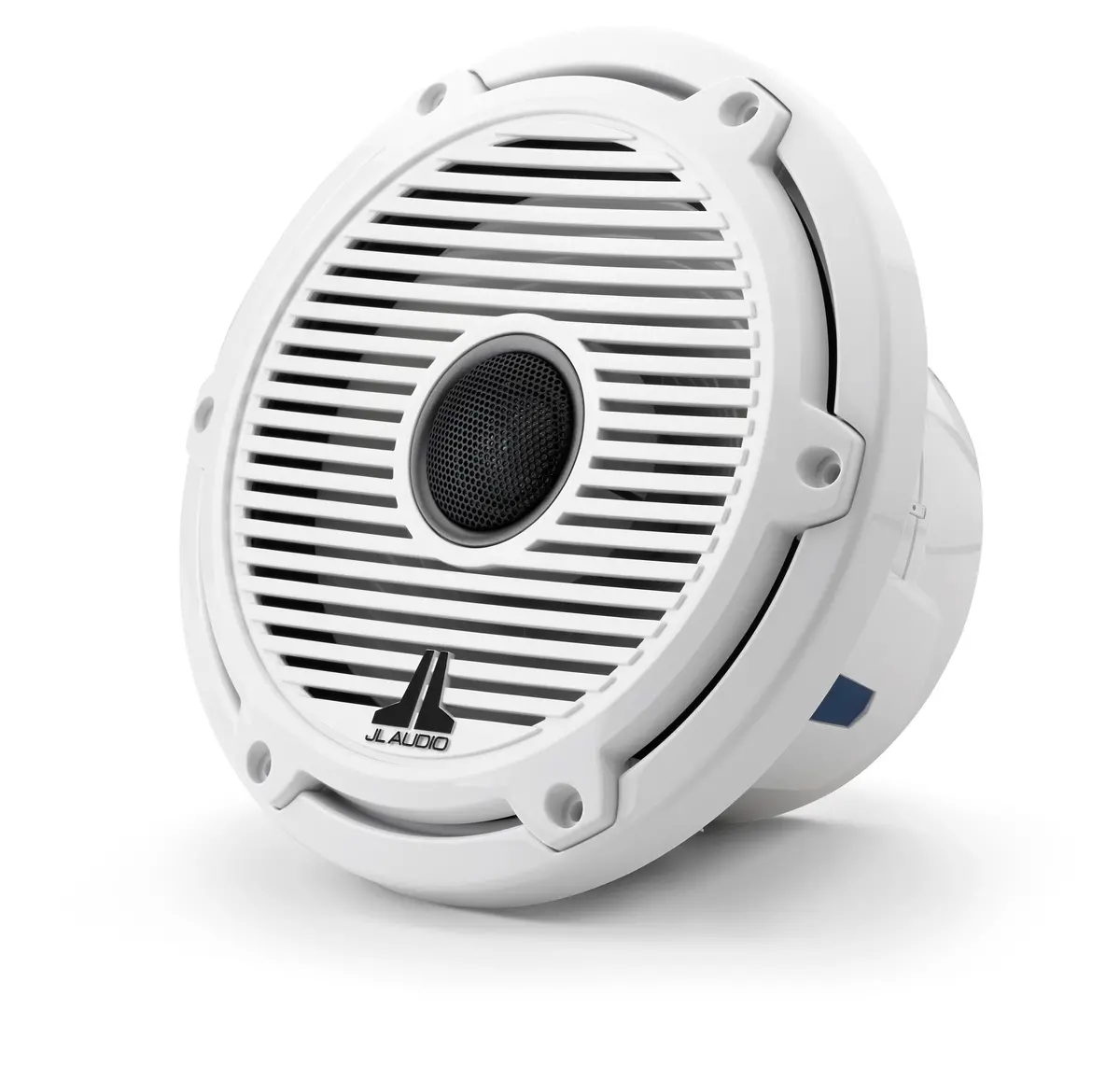

Speaker Highlights

• 7.7″ 2-way marine speakers
• injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
• 1″ silk dome tweeter
• 2-way crossover attached to the woofer basket
• UV- and corrosion-resistant polymer baskets and white “Sport” grilles
• patented tweeter bridge attaches to the speaker’s frame, allowing for removal and painting of grille
• designed for free-air applications (no enclosures needed)
  • for best performance, speaker needs at least 2 cubic feet of airspace
• power handling: 100 watts RMS (200 watts peak power)
• frequency response: 45-25,000 Hz
• sensitivity: 91 dB
• cutout diameter: 6.188
• frame diameter: 7.712
• mounting depth: 3.38
• warranty: 2 years

Speaker Size	7.7
Design	2-way
Tweeter Design	1″ Dome
Tweeter Composition	Treated Silk
Woofer Composition	Mica-Filled IMPP
Woofer Surround	Rubber
Parts Warranty	2 Years
Labor Warranty	2 Years

Speaker Specifications

Sensitivity	91 dB at 1 watt
Frequency Response	45 – 25k Hz
Max RMS Power Handling	100
Peak Power Handling (Watts)	200
Impedance (Ohms)	4
Top-mount Depth (Inches)	3 7/16
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	6 1/4
