Purpose-engineered and built for real marine duty, M-Series coaxial systems deliver maximum audio performance in any open-air boating environment.

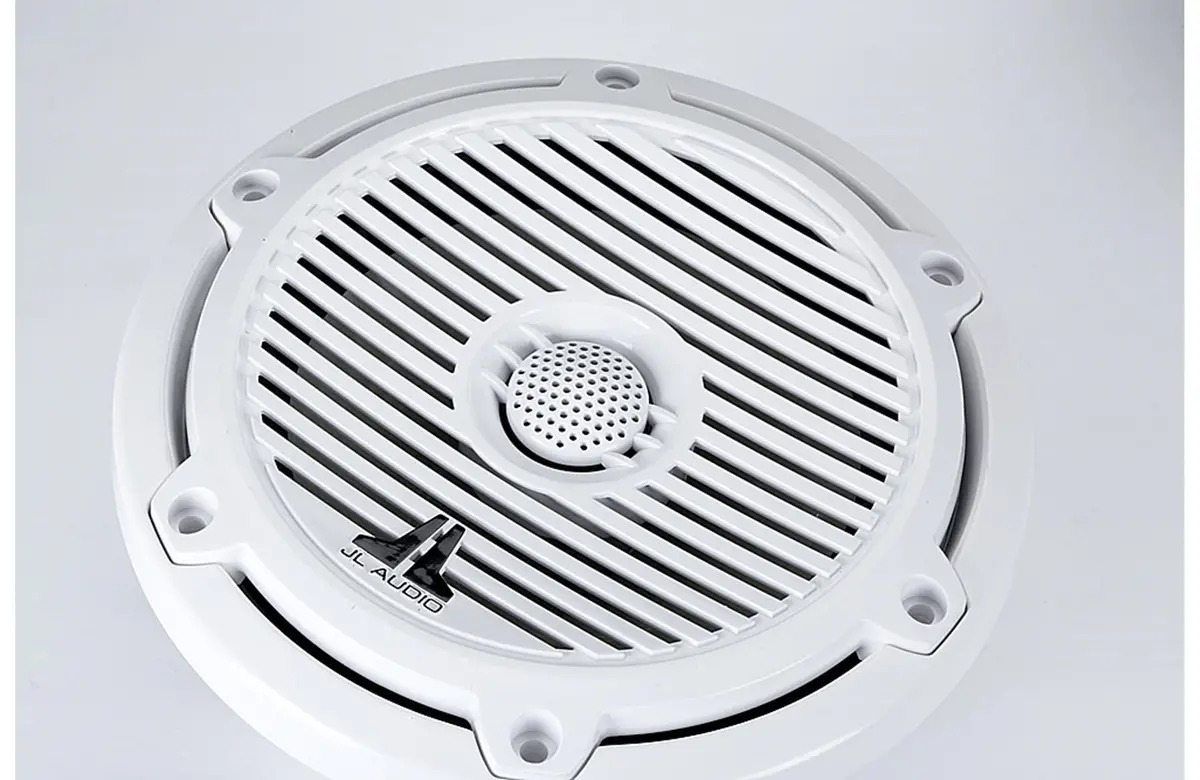

This special, narrow-flange, 6.5-inch coaxial speaker fits in spaces where a conventional marine 6.5-inch speaker will not. It features an outer frame diameter of only 6.55 in. (166 mm), yet still maintains the same cone area as conventional, wide-flange designs.
The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor. The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics. You will appreciate the clean, articulate high-frequency response of the M-Series dome tweeter, especially at higher volume levels.
A true 2-way passive crossover network is sealed in a protective capsule and mounted to the woofer’s frame so that it does not require additional mounting provisions.
Although M650-CCX Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.
Specifications
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz – 25 KHz ± 3 dB |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| Continuous Power Handling (RMS) | 75 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 25 – 150 W / Ch. |
