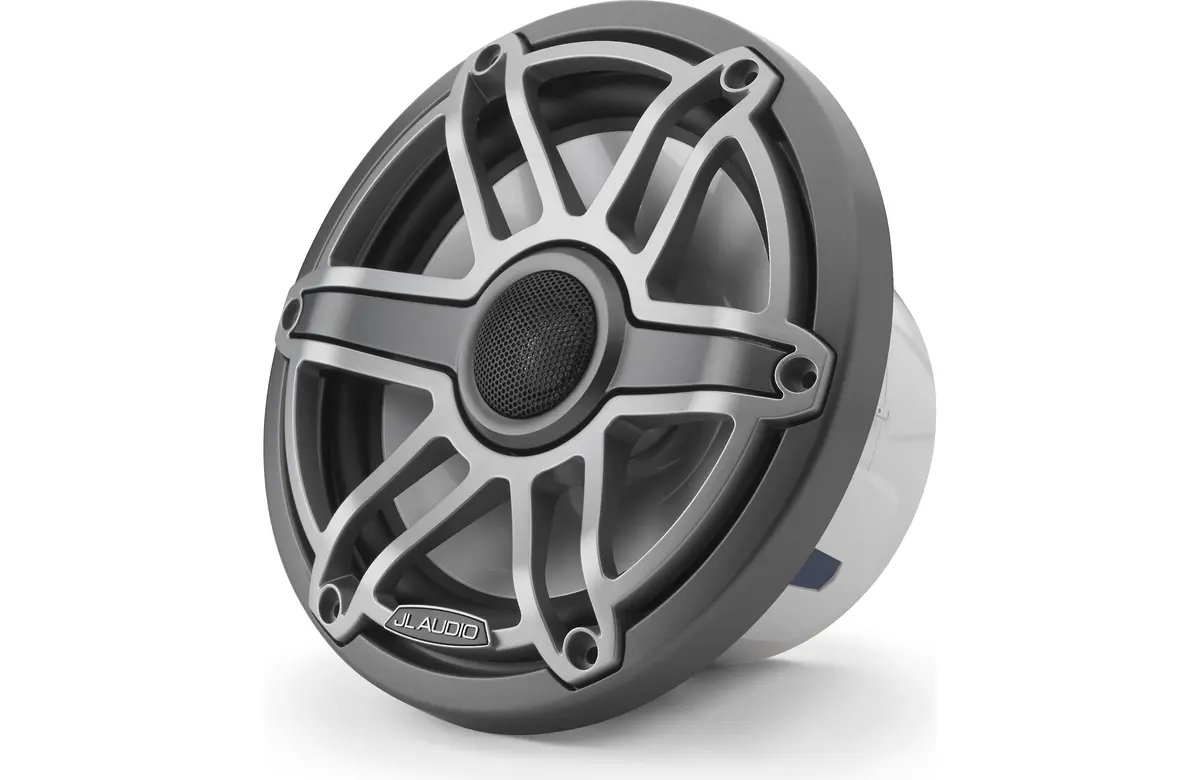

M6 7.7-inch Marine Coaxial Speakers for Infinite-Baffle Use (100 W, 4 Ω) – Gunmetal Trim Ring, Titanium Sport Grille
Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.
The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 – 200 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz – 25 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter (A) | 7.70 in / 196 mm |
| Bolt Hole Circle Diameter (B) | 6.92 in / 176 mm |
| Frontal Grille Protrusion* (C) | 1.08 in. / 27 mm |
| Mounting Hole Diameter (D) | 6.25 in / 159 mm |
| Mounting Depth (E) | 3.32 in. / 84 mm |
| *Frontal grille protrusion measured from mounting surface | |
