M3 7.7-inch Marine Enclosed Coaxial Speaker System (70 W, 4 Ω) – Satin Black Enclosure, Gunmetal Sport Grille with RGB LED Illumination

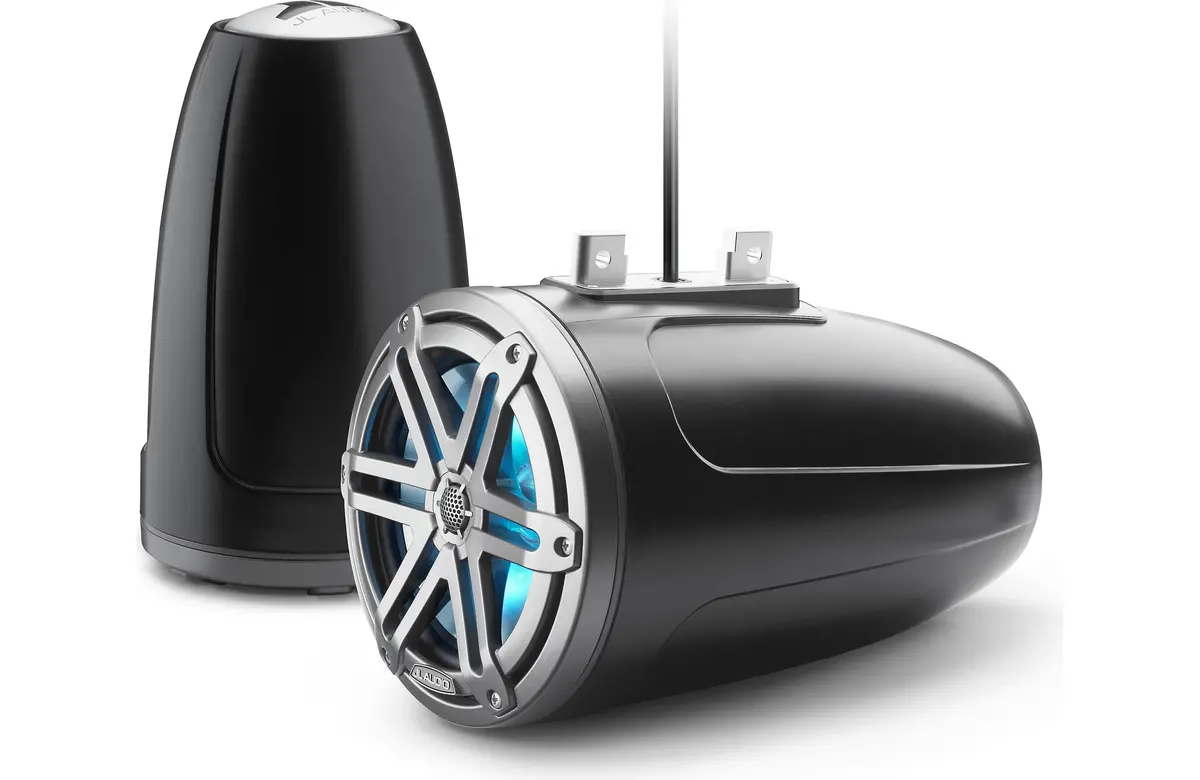

Enclosed in these beautiful, injection-molded enclosures are our high-performance, M3 7.7-inch coaxial tower speakers. Specifically tuned for tower enclosure applications, these coaxial drivers deliver clean, loud audio that can be heard well beyond the boat when mounted up high.
The enclosures feature a decorative, aluminum logo cap on the end opposite the speaker, which can be oriented to match any custom mounting application. Each is designed to mate with one of our clamp systems (sold separately, and available to fit a wide range of pipe diameters). The wire exits through the center of the mount, staying high and dry, and out of sight.
Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.
For best results, we recommend powering these systems with an amplifier in the 25-140 W per channel range.
Like all JL Audio marine speakers, this system is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Sold as a pair.
Need help determining the correct Pipe-Mounting Clamp for your installation?
Download the ETXv3 Pipe Fixture Ruler.
Features
- 7.7″ 2-way marine tower speakers (pair)
- injection-molded, mica-filled polypropylene woofers with synthetic rubber surrounds
- UV- and corrosion-resistant polymer baskets and grilles
- 3/4″ silk dome tweeters
- 2-way crossovers attached to the woofer baskets
Specifications
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz – 25 KHz ± 3 dB |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 – 200 W / Ch. |
| Enclosure Diameter (A) | 7.70 in / 196 mm |
| Enclosure Depth (B) | 12.67 in / 322 mm |
| Height including Mounting Clamp Receiver* (C) | 8.74 in / 222 mm |
| Mounting Clamp Receiver / Enclosure Offset (D) | 1.04 in / 26 mm |
| *Mounting Clamps Required (Sold Separately) | |
