Description
2-Channel Class A/B Full-Range Amplifier
180 W x 2 @ 2 Ω / 110 W x 2 @ 4 Ω – 14.4V
Highlights >

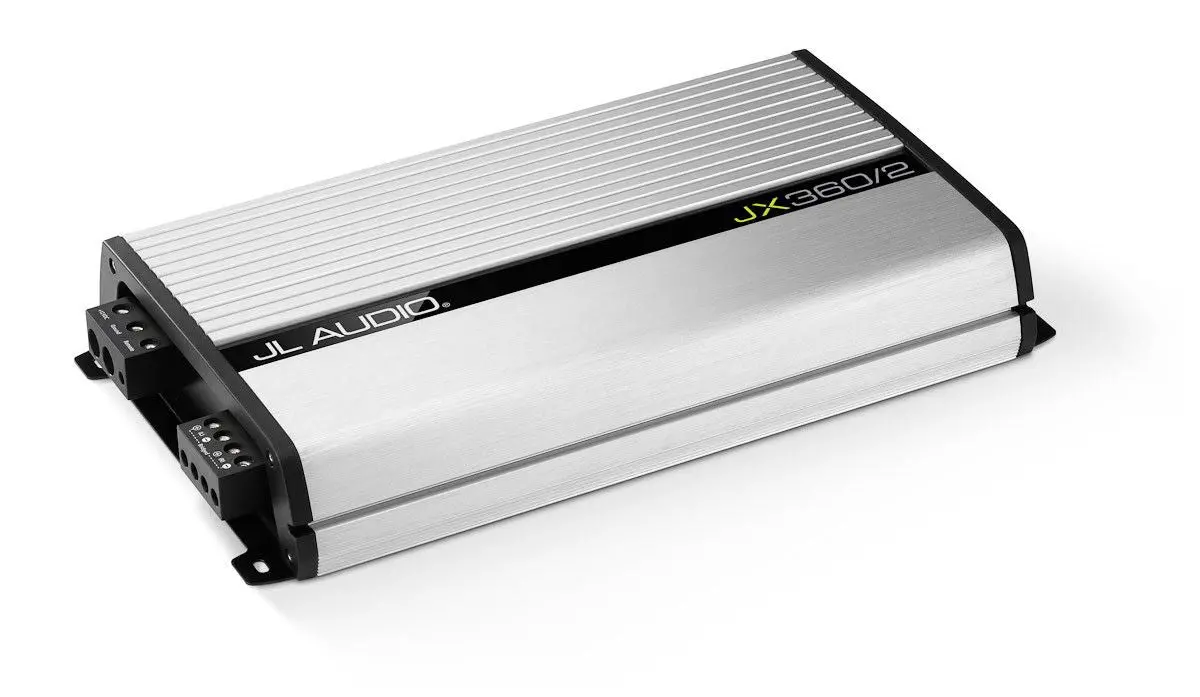

The JX 360/2 is perfect for those seeking a truly powerful, two-channel Class A/B design. Its robust MOSFET power supply keeps things rock-stable to deliver a very strong 180 watts to each of its two channels into 2 ohms (14.4V, 1% THD). This amplifier can also be bridged to produce 360 W x 1 @ 4 ohms (mono).
Use the JX360/2 in combination with one of the JX monoblocks to build an amazing amplification system at a very affordable price.
The JX360/4 includes a defeatable 12 dB / octave filter, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.
Rated Continuous (RMS) Power @ 14.4 V
|
@ 4 Ω |
110 W RMS x 2 |
|
@ 2 Ω |
180 W RMS x 2 |
|
Bridged @ 4Ω |
360 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
|
@ 4 Ω |
90 W RMS x 2 |
|
@ 2 Ω |
140 W RMS x 2 |
|
Bridged @ 4Ω |
280 W RMS x 1 |
General Specifications >
|
Frequency Response |
20 Hz – 20 kHz (+0, -1dB) |
|
S/N Ratio, referred to highest rated power |
>100 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
|
S/N Ratio, referred to 1 W |
>77 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
|
Damping Factor @ 4 Ω |
>60 / 50 Hz |
|
Damping Factor @ 2 Ω |
>30 / 50 Hz |
|
THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
|
Input Voltage Range @ RCA Inputs |
200 mV – 4 V RMS |
|
Input Voltage Range @ High-Level Inputs |
2 V – 10 V RMS |
|
Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
|
Fuse Rating |
50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
|
Filter Mode(s) |
Low-Pass or High-Pass |
|
Filter Slope(s) |
12 dB/octave |
|
Filter Frequency Range |
50 Hz – 200 Hz |
|
Detented, Calibrated Filter Freq. Potentiometer |
No |
|
Filter Defeat Function |
No |
|
Remote Level Control |
No |
|
Security Cover for Controls |
No |
|
Pass-Through Preamp Output |
Unbuffered |
Physical Specifications
|
Height (H) |
2.09 in / 53 mm |
|
Width (W) |
13.7 in / 348 mm |
|
Depth (D) |
7.68 in / 195 mm |
|
Net Weight |
7.6 lb / 3.45 kg |
