Description
Highlights

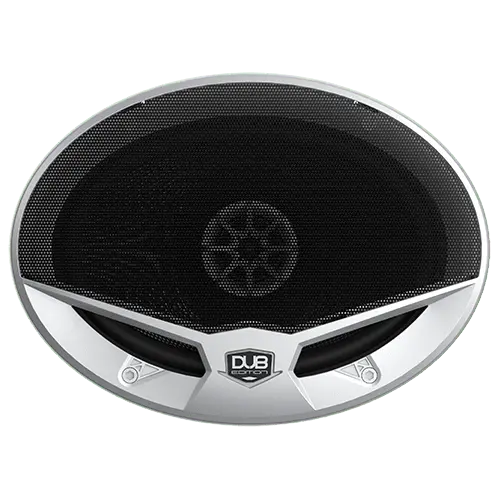

5″ x 7″ / 6″ x 8″ Two-Way Speaker w/1″Voice Coil
- 25mm Silk dome Tweeter
- Injection Molded Polypropylene Cone w/ Rubber Surround
- Sensitivity (2.83V/1M): 95Db
- Heavy Duty Motor Structure w/3.4mm Xmax
- Grills Included
With superior materials and construction, Jensen DUB Edition Speakers deliver high quality sound and crystal clear music with strong frequency response. The DUBs257 5″ x 7″ / 6″ x 8″ two way speaker with 1″ voice coil features an injection molded polypropylene cone with rubber surround a 25mm silk balanced dome tweeter and heavy duty motor structure with 3.2mm Xmax guarantee to deliver an excellent full range, bold sound quality with treble and bass.
This pair of speakers has been crafted above all for exceptional audio performance with maximum power handling of 280 Watts (70 Watts RMS) offering a frequency response of 42Hz~30kHz and 4-Ohm impedance. The aggressive design of the Jensen DUB Edition car speakers are black with silver accents ready to suit any vehicles interior and are designed with a shallow mounting depth for easy install into a wide variety of vehicles.
Specifications
| System Type | 5″x7″ / 6″x8″ two-way speaker with 25mm silk dome tweeter |
| Impedance | 4 Ohms |
| Frequency Response | 42Hz – 30kHz |
| Total Peak Power | 280W |
| RMS Power | 70W |
| Efficiency 1W / 1M | 92dB |
| Efficiency 2.83V / 1M | 95dB |
| Xmax | 3.4mm |
| Type | 2-way |
| Diameter | 5″ x 7″ / 6″ x 8″ |
| Tweeter | 25mm silk dome |
| Supertweeter | N/A |
| Woofer Cone Material | Polypropylene w/ mica flake |
| Woofer Surround Material | NBR (Nitrile Butadiene Rubber) |
| Woofer Spider | Nomex fiber blend |
| Vented Spider | No |
| Woofer Voice Coil Diameter | 1″ (25mm) |
| Woofer Magnet Weight | 13 |
| Woofer Basket | Stamped steel with textured black paint |
| Terminals | 0.205″ and 0.110″ tab |
| Grille | Yes |
| Grille Height | 25.5mm (1.0″) |
| Tweeter Height (from mounting surface) | 16.5mm (0.65″) |
| Mounting Cutout | 128mm x 181mm (5.05″ x 7.1″) |
| Mounting Depth | 56mm (2.20″) |
