Description
Highlights

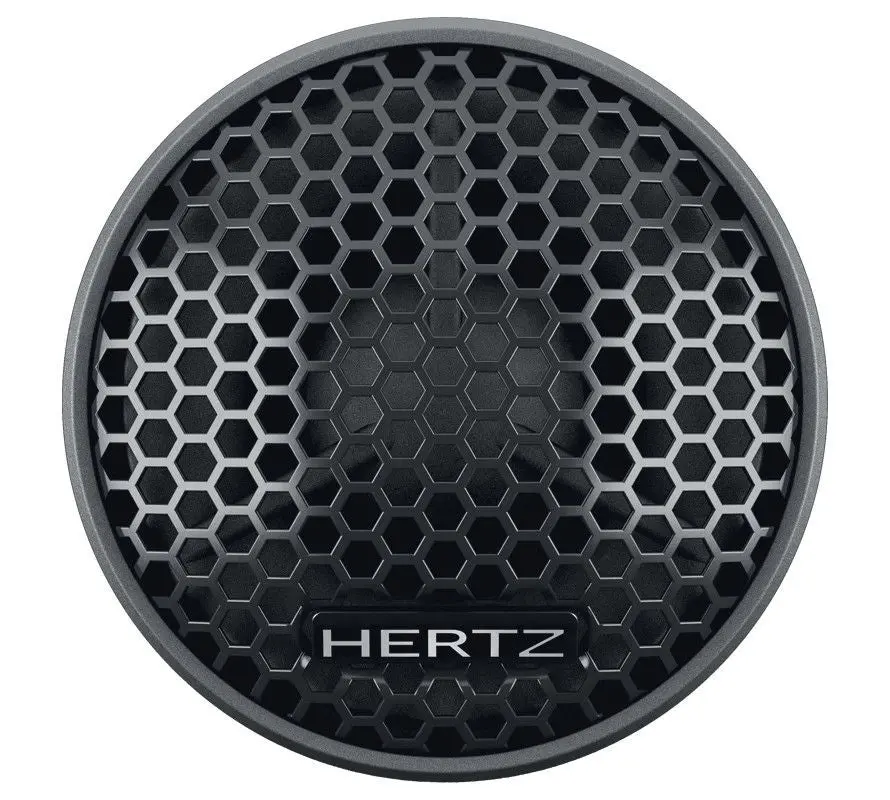

The optimized structure of the neodymium tweeter offers high efficiency and linear, extended frequency response unheard of in this category. The DT 24 car audio tweeters optimized geometry boasts an efficient, highly linear annular acoustic lens along with a PEI membrane, selected for its high stiffness and heat-resistance. These design solutions provide the best damping with a detailed, linear sound, even at high SPL levels. Its installation is universal thanks to the supplied brackets allowing both surface mount and flush mount applications.
Features
- 24 mm PEI dome-cone tweeter.
- High efficiency annular acoustic lens.
- High energy neodymium magnet.
- Mounting accessories for external or embedded mounting included.
Specifications
| Component | Tweeter |
| Size mm (in.) | 24 (0.9) |
| Power Handling – Peak W | 80 W @ 3,5 kHz 6 dB Oct |
| Impedance Ω | 4 |
| Depth mm (in.) | 20 (0.8) |
| Frequency response Hz | 3k ÷ 23k |
| Sensitivity dB SPL | 94 |
| Magnet | Neodymium |
| Cone/Dome | PEI |
| Crossover type | Hi Pass |
| Crossover cut off | 3,5 kHz @ 6 dB Oct |
| Spl dB | 60 |
Electro-Acoustic Specifications
| D mm | 24 |
| Re Ohm | 3,3 |
| Fs Hz | 2800 |
| Le mH | 0,3 @ 1 kHz / 0,04 @ 10 kHz |
| Spl dB | 94 |
Physical Specifications
| A | 34 mm | 1.3 in. |
| C | 20 mm | 0.8 in. |
| D | 13 mm | 0.5 in. |
