Description
Highlights

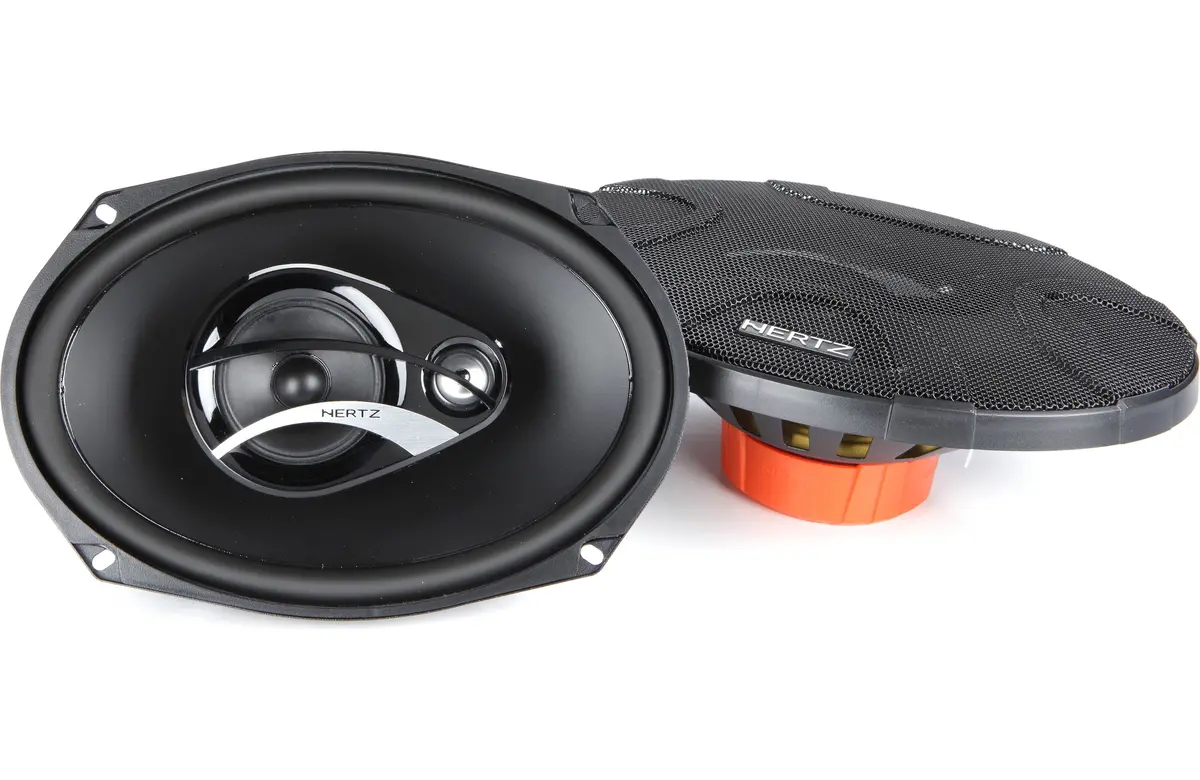

An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.
Features
- Large motor assembly for mobile voice coil control.
- Pure copper voice coil, wound on conex former, for maximum lightness.
- Water-repellent treated paper cone.
- TPU surround, for wide excursion and resonance damping.
- 60 mm paper tweeter with ferrite magnet.
- Supertweeter with PEI dome, for compactness and energy at high frequencies.
- DIN size basket protected by abrasion-proof dust paint.
- Tin-plated, high current terminals.
- Silver-plated lead wires for maximum reliability and conductivity.
- Butyl rubber protective cover, against crashes and abrasions.
- Epoxy glue for basket and motor system provides perfect coupling.
- Low carbon content plates for maximum magnetic permeability and high heat dissipation
Specifications
| Component | 3-Way Coaxial |
| Size mm (in.) | ( 6 x 9 ) |
| Power Handling – Peak | 180 W |
| Power Handling – Continuous | 90 W |
| Impedance | 4 Ω |
| Depth mm (in.) | 98 (3.9) |
| Frequency response | 45 ÷ 21k Hz |
| Woofer Magnet Size D x d x h mm (in.) | 80 x 40 x 15 (3.1 x 1.6 x 0.6) |
| Weight of One Speaker kg (lb.) | 0.95 (2.09) |
| Sensitivity | 93 dB SPL |
| Voice coil Ø | 25 (1.0) mm (in.) |
| Woofer size | 6 x 9 in. |
| Tweeter size | 60 (2.5) mm (in.) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | High density flux ferrite |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | Water-repellent pressed paper |
Electro-Acoustic Specifications
| D mm | 170 |
| Re Ohm | 3,4 |
| Fs Hz | 66 |
| Vas I | 25,7 |
| Mms g | 16,5 |
| Cms mm/N | 0,35 |
| BL T*m | 3,9 |
| Qts | 1,12 |
| Qes | 1,55 |
| Qms | 4,06 |
| Spl dB | 93 |
Physical Specifications
| A1 | 237 mm (9.3 in.) |
| A2 | 162 mm (6.4 in.) |
| B1 | 224 mm (8.8 in.) |
| B2 | 153 mm (6.0 in.) |
| C | 98 mm (3.9 in.) |
| D | 77 mm (3.0 in.) |
