Description
Highlights

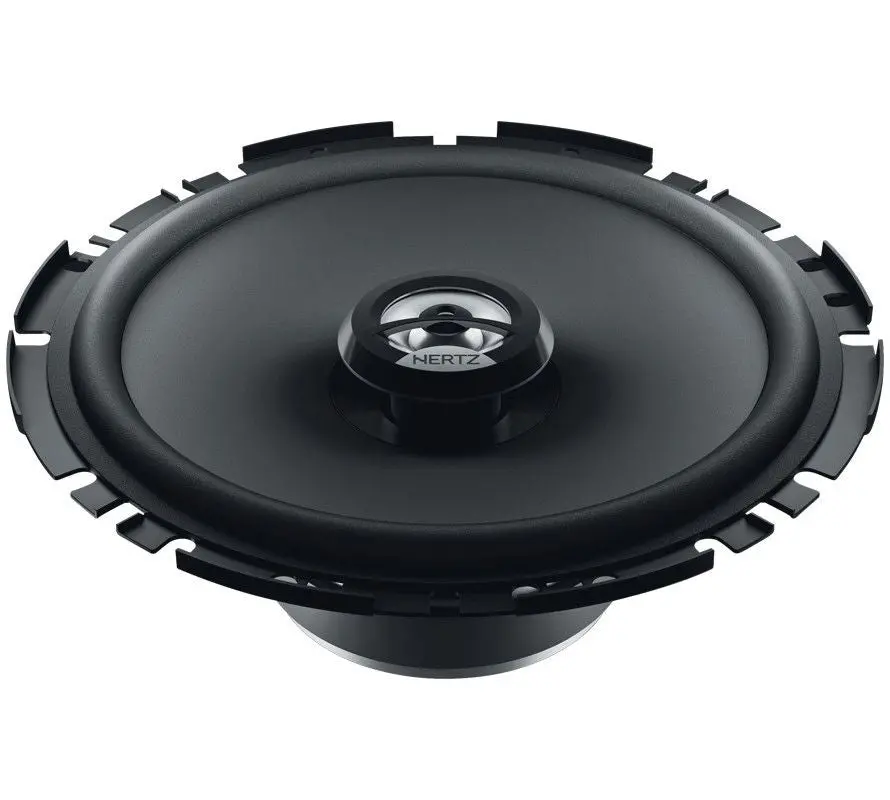

With its 51 mm (2,0 in.) maximum depth the DCX 170.3, is a “flat” car audio coaxials optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a cone former and painstaking care in its build ensures performance surpassing other components within the same category.
Specifications
| Component | 2-Way Coaxial |
| Size mm (in.) | 170 (6.7) |
| Power Handling – Peak | 100 W |
| Power Handling – Continuous | 50 W |
| Impedance | 4 Ω |
| Frequency response | 60 ÷ 21k Hz |
| Woofer Magnent Size D x d x h mm (in.) | 80 x 32 x 10 (3.1 x 1.3 x 0.4) |
| Weight of One Speaker kg (lb.) | 0.56 (1.23) |
| Depth mm (in.) | 51 (2.0) |
| Sensitivity | 93 dB SPL |
| Woofer size | 170 (6.7) mm (in.) |
| Tweeter size | 15 (0.6) mm (in.) |
| Woofer Voice Coil Ø | 25 (1.0) mm (in.) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Neodymium |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
Electro-Acoustic Specifications
| D mm | 133 |
| Re Ohm | 3.6 |
| Fs Hz | 85 |
| Vas I | 11,3 |
| Mms g | 8,8 |
| Cms mm/N | 0,4 |
| BL T*M | 3,7 |
| Qts | 0, 95 |
| Qes | 1,21 |
| Qms | 4,39 |
| Spl dB | 93 |
Physical Specifications
| A | 165 mm (6.5 in.) |
| B | 140 mm (5.5 in.) |
| C | 51 mm (2.0 in.) |
| D | 45 mm (1.8 in.) |
