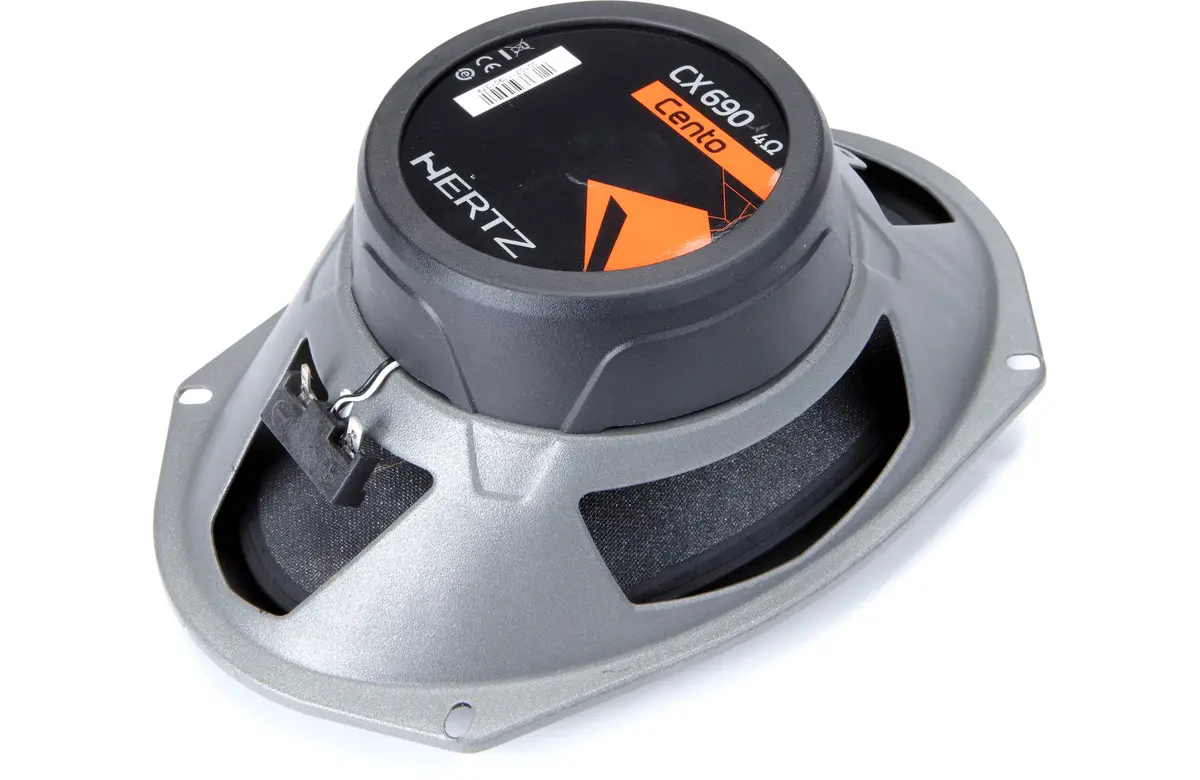

Hertz CX690 Cento Series 6×9″ 3-Way Coaxial Speaker Set with Grilles

Description

Highlights

The three-way elliptical coax CX 690 featuring a 6×9 inch cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.

Features

• 6×9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
• Wide rubber suspension engineered for a long excursion and excellent sound damping.
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
• Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
• 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
• 20 mm (0.8 in.) dome super tweeter to maximize the level of very high frequencies in horizontal installations.
• Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
• Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

SPP-M SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.

Specifications

Power Handling – Peak	300 W
Power Handling – Continuous	100 W
Impedance	4 Ω
Frequency response	40 ÷ 23k Hz
Sensitivity	93,5 dB SPL
Woofer size	6 x 9 in.
Tweeter size	40 (1.58) mm (in.)
Supertweeter size	20 (0.8) mm (in.)
Woofer Voice Coil	30 (1.2) Ø mm (in.)
Tweeter voice coil	28 (1.1) Ø mm (in.)
Woofer magnet	High density flux ferrite
Tweeter magnet	Neodymium
Woofer cone	Semi Pressed Paper-Mica
Tweeter dome	PEI
Supertweeter dome	PEI



Electro-Acustic Specifications

D mm	139
Re Ohm	3.3
Fs Hz	70
Le mH	0.2
Vas I	11.1
Mms g	13
Cms mm/N	0.34
BL T*m	4.9
Qts	0.67
Qes	0.83
Qms	3.3
Spl dB	93.5

Physical Specifications

A	238 mm	9.37 in.
B	224 mm	8.82 in.
C	95 mm	3.74 in.
D	78.5 mm	3.09 in.
E	268 mm	10.55 in.
F	29 mm	1.14 in.

Frequency Response
