Description
Highlights
- 6-1/2″ bi-amped component speaker system includes two woofers, two tweeters, and two crossovers
- Flax woofer cone with “tuned mass damper” surround
- Aluminum/magnesium inverted dome tweeter
- Pre-wired crossover system with bi-amp connections
- 4-ohm impedance
- Handles up to 80 watts RMS (160 watts peak)
- Frequency response: 55-28,000 Hz
- Sensitivity: 90.5 dB at 2.83 volts
- Woofer top-mount depth: 3-1/16″
- Warranty: 1 year
Features
Woofer Size Classification: Some manufacturers, including Focal, call this size woofer a 6½”. Because it requires a larger cutout than a standard 6½” speaker.
Aluminum Basket: The woofers’ cast aluminum baskets are rigid and non-magnetic.
Phase Plug: The bullet-shaped phase plug in the center of the woofer ensures a smooth, flat off-axis frequency response by preventing the high frequency sound waves emanating from one side of the cone from interfering with sound waves from the other side of the cone.
Surround: Each woofer uses a butyl rubber surround, resistant to ultraviolet rays, temperature extremes, and humidity to add to the speaker’s reliability and longevity.

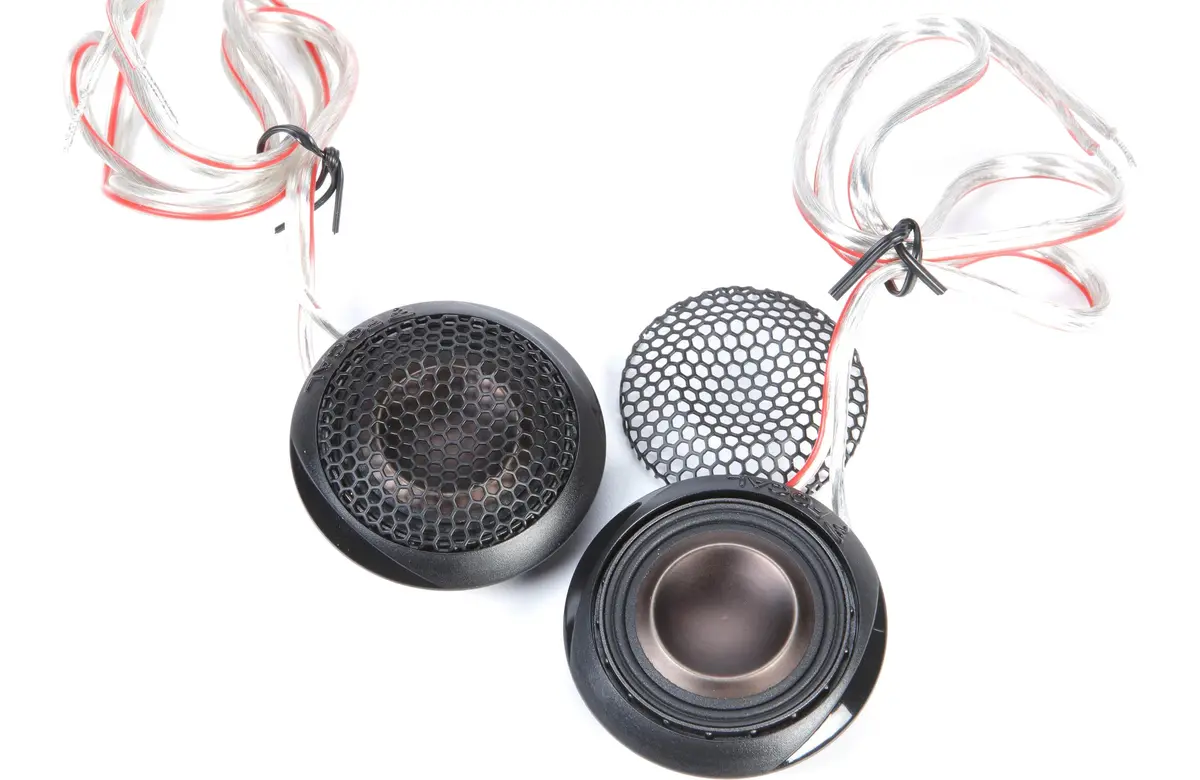

Tweeters: The tweeters have inverted Aluminum/Magnesium domes, producing a broad sound stage. They can be surface or flush mounted using the included adapters. The angled surface mount housings can be positioned at 25° or 45°.
Specifications
| Speaker Size | 6 1/2 |
| Design | 2-way |
| Tweeter Design | Inverted Dome |
| Impedance (Ohms) | 4 |
| Tweeter Composition | Aluminum/Magnesium |
| Woofer Composition | Flax |
| Woofer Surround | Butyl Rubber |
| Sensitivity at 2.83 volts | 90.5 |
| Frequency Response | 55 – 28k Hz |
| Maximum RMS Wattage | 80 |
| Peak Power Handling (Watts) | 160 |
| Top-mount Depth (Inches) | 3 1/16 |
| Cutout Diameter or Length (inches) | 5 5/8 |
| Mounting Height (Inches) | 0.427 |
