Description
Highlights

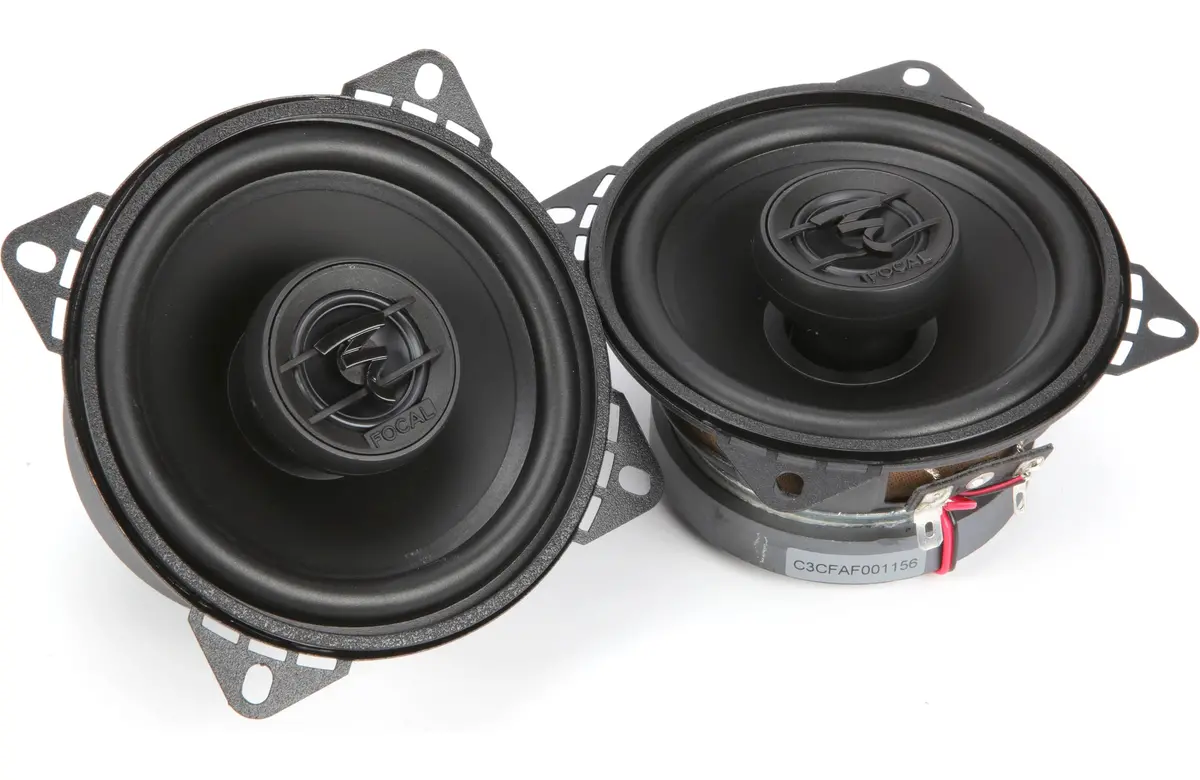

- 2-way car speakers (pair)
- 4″ polypropylene woofer cone with butyl rubber surround
- Mylar inverted dome tweeter
- Rigid steel basket
- Mesh/ABS mesh grilles included
- Handles up to 30 watts RMS (60 watts peak)
- Frequency response: 80-21,000 Hz
- Sensitivity: 88 dB
- Impedance: 4 ohms
- Mounting depth: 1-15/16″
- Warranty: 1 year
Features
Woofer: The polypropylene cone and butyl rubber surround are resistant to the temperature extremes and humidity often found in the automotive environment, adding to the speaker’s reliability and longevity.
4/2 Hole Compatibility: Most 4″ factory speakers use four mounting screws, however, in some vehicles, only two are used. The ACX 100’s mounting tabs can be removed, allowing installation in 4-hole or 2-hole applications. Care should be taken handling the speaker after any tabs are removed because the broken edges may be sharp.
| Speaker Size | 4″ |
| Design | 2-Way |
| Tweeter Design | Inverted Dome |
| Impedance | 4 Ohms |
| Tweeter Composition | Mylar |
| Woofer Composition | Polypropylene |
| Woofer Surround | Butyl Rubber |
Specifications
| Sensitivity at 2.83 volts | 88 |
| Frequency Response | 80 – 21k Hz |
| Maximum RMS Wattage | 30 |
| Peak Power Handling (Watts) | 60 |
| Top-mount Depth | 1 ¹⁵⁄₁₆” |
| Bottom-mount Depth | 2 ⅛” |
| Cutout Diameter | 3 ¹¹⁄₁₆” |
| Mounting Height | 0.443″ |
