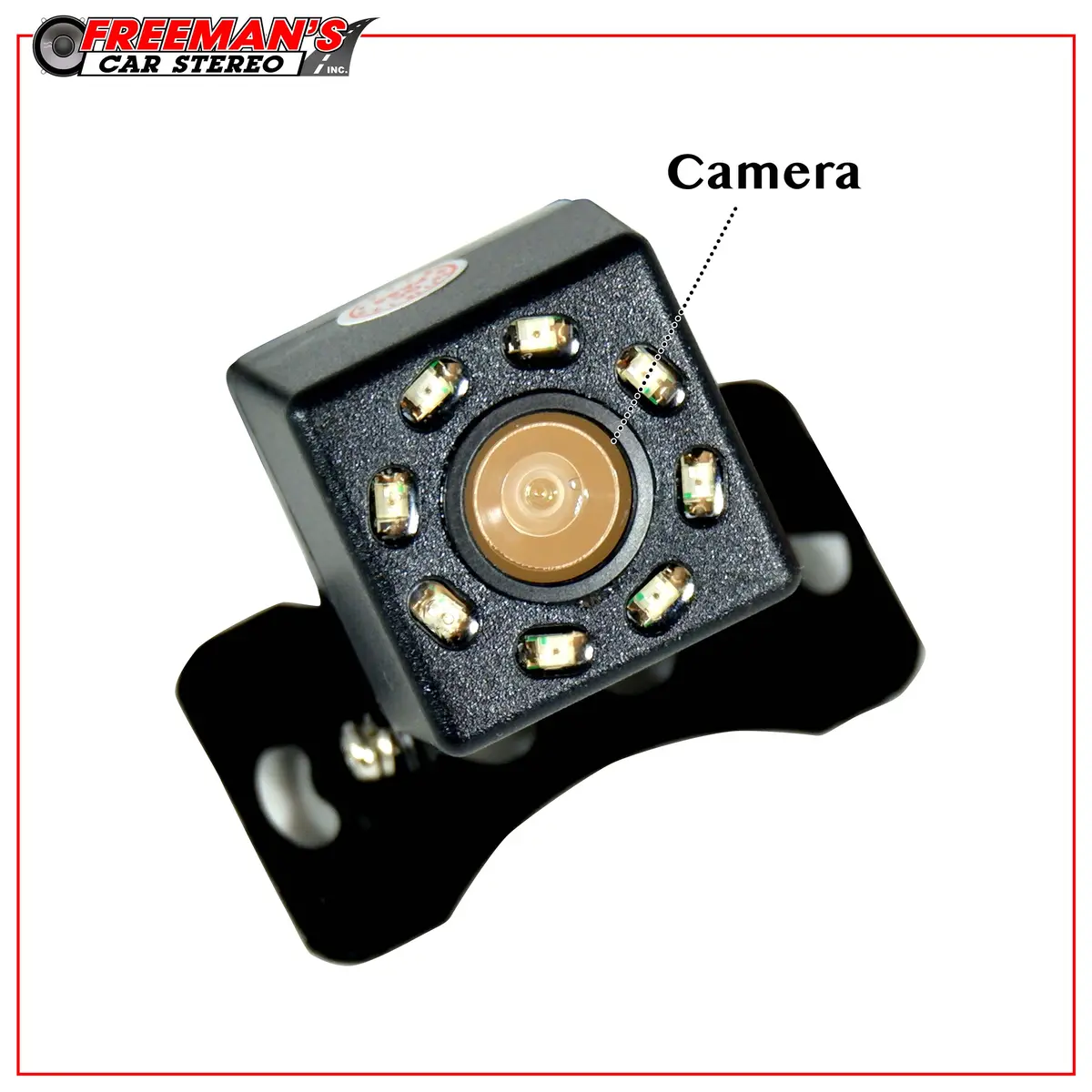

Freeman’s Car Stereo 8 LED Square Hanging Backup Camera
This square, weatherproof hanging backup camera comes with eight LEDs to illuminate the viewing area. Camera works even in extreme weather conditions, from -4° F to 158° F. This camera stays safe to store in even harsher temperatures, from -22° F to 167° F.
Features
Camera has a weatherproof grade of IP67 which makes it completely protected from dust and protected against the effects of temporary immersion between 15 cm and 1 m of water for a test duration of 30 minutes.
Automatic Back light compensation makes sure the scene is always lit up and works with a minimum of 0.2 lux. Camera has a sensor viewing angle from 120° – 170° allows you to see exactly how much room you have when maneuvering through tight spaces.
Specifications
| Image Device | 1/4″ CMOS |
| Picture Pixels | 640 px x 480 px |
| Signal System | NTSC / PAL |
| Synchronization System | Internal |
| Horizontal Definition | 420 TV lines |
| Minimum Illumination | 0.2 lux |
| Signal to Noise Ratio | Better than 45 dB |
| Back light compensation | Automatic |
| Sensor viewing angle | 120° – 170° |
| Water-proof grade | IP67 |
| Voltage Range | 9-16v DC |
| Video Output | 1vpp 75Ω |
| Working temperature | -20 ° – 70° C |
| Storage temperature | -30 ° – 75° C |
Included With Camera
- x1 Car Rear Camera
- x1 Video Cable
- x1 Power Cable
- x1 User’s Manual
- x1 Warranty Card
