Description
Highlights
- 7-channel amplifier
- 80 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
- Dolby® and DTS® surround sound decoding
- Dolby Atmos® processing for use with in-ceiling or “height” speakers for more enveloping home theater sound
- Dolby Atmos Height Virtualization and DTS Virtual:X® create three-dimensional effects without height speakers
- Analog-to-HDMI video conversion
- Upscales standard-definition video signals to HD and Ultra HD (up to 8K)
- Audyssey MultEQ® XT auto speaker setup and room calibration delivers balanced, dynamic sound with enhanced surround performance
| Number Of Channels | 7 |
| Stereo RMS Power (watts) | 80 |
| THD in Stereo | 0.08 % |
| Frequency Bandwidth (stereo) | 20-20k Hz |
| Minimum Impedance L/R | 4 ohms |
| Minimum Impedance Center | 4 ohms |
| Minimum Impedance Surround | 4 ohms |
Audio Streaming Features
- Built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
- HEOS Built-in technology wirelessly connects compatible HEOS components for whole-home audio
- Includes support for Pandora®, SiriusXM, and Spotify® (subscription required for some services)
- Free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback
- Works with Amazon Alexa and Google Assistant voice controllers
- Apple AirPlay 2 lets you easily stream from an iPhone® or iPad® and ask Siri to play Apple Music®
- supports multi-room audio with compatible wireless speakers
- Built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
- Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
- play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously
Multi-Room Audio Features
- Dual-room/dual-source output
- Amp assign function lets you use the surround back speaker outputs in Zone 2
- Using powered 2nd-room output allows 5.2-channel sound in main room
- All Zone TV Audio lets you play surround sound in your main room and downmixed stereo in your 2nd room
- Zone 2 compatible audio sources: HDMI audio, optical/coaxial digital inputs, analog audio inputs, AM/FM tuner, USB, Bluetooth, and HEOS music apps
- Cannot select different USB/Bluetooth/network sources for each zone
| Powered Multi-room Audio Output | Yes |
| Preamp Multi-room Audio Output | Yes |
| Multi-room HDMI Output | No |
| Total Number of Zones | 2 |
| Playback from Digital Audio Inputs | No |
| Playback from Streaming Sources | Yes |
HDMI Features
- HDMI audio/video switching: 6 in, 1 out
- 3 inputs and 1 output support 8K/60Hz and 4K/120Hz video (HDMI 2.1)
- All inputs and outputs support 4K/60Hz video
- HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
- HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
- Supports HDR10, HDR10+, Dolby Vision™, and HLG
- Gaming-optimized video processing technologies for a smooth, lag-free gaming experience
- Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing
- Supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
- eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
| HDMI Version | 2.1 |
| VRR (Variable Refresh Rate) | Yes |
| ALLM (Auto Low Latency Mode) | Yes |
| 4K/120Hz-Capable Inputs | 3 |
| Audio Return Channel | eARC supported |
| Video Upscaling | To 4K and 8K |

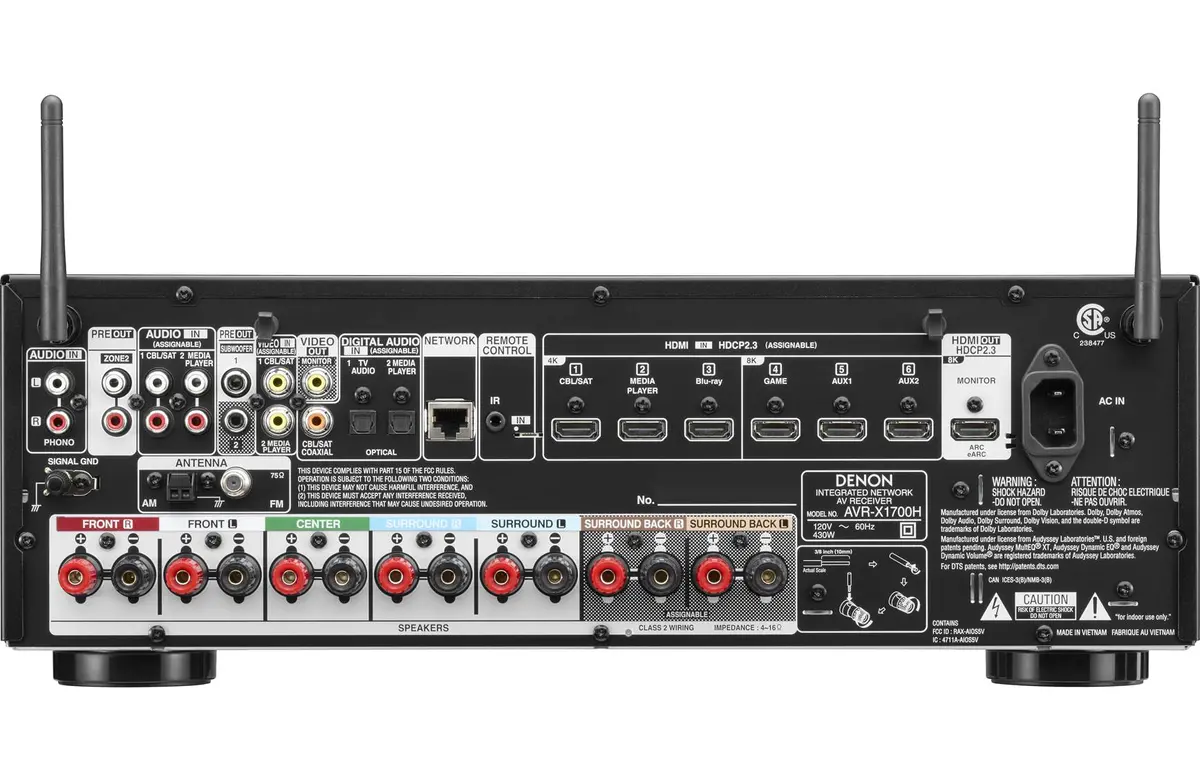

Specifications
| Phono Input | 1 |
| Audio-Video Inputs | 6 |
| Audio-Only Inputs | 2 |
| Component Video Inputs | 2 |
| Component Video Monitor Outputs | None |
| Optical Digital Inputs | 2 |
| Coaxial Digital Inputs | 1 |
| Number of HDMI Inputs | 6 |
| HDMI Monitor Outputs | 1 |
| Subwoofer Outputs | 2 |
| FM Sensitivity | 12.8 dBf |
| Multibrand Remote Control | No |
| Learning Remote | No |
| Width (inches) | 17.1875 |
| Height (inches) | 6 |
| Depth (inches) | 14.4375 |
| Weight (pounds) | 19 |
| Parts Warranty | 3 Years |
| Labor Warranty | 3 Years |
