Description
Highlights

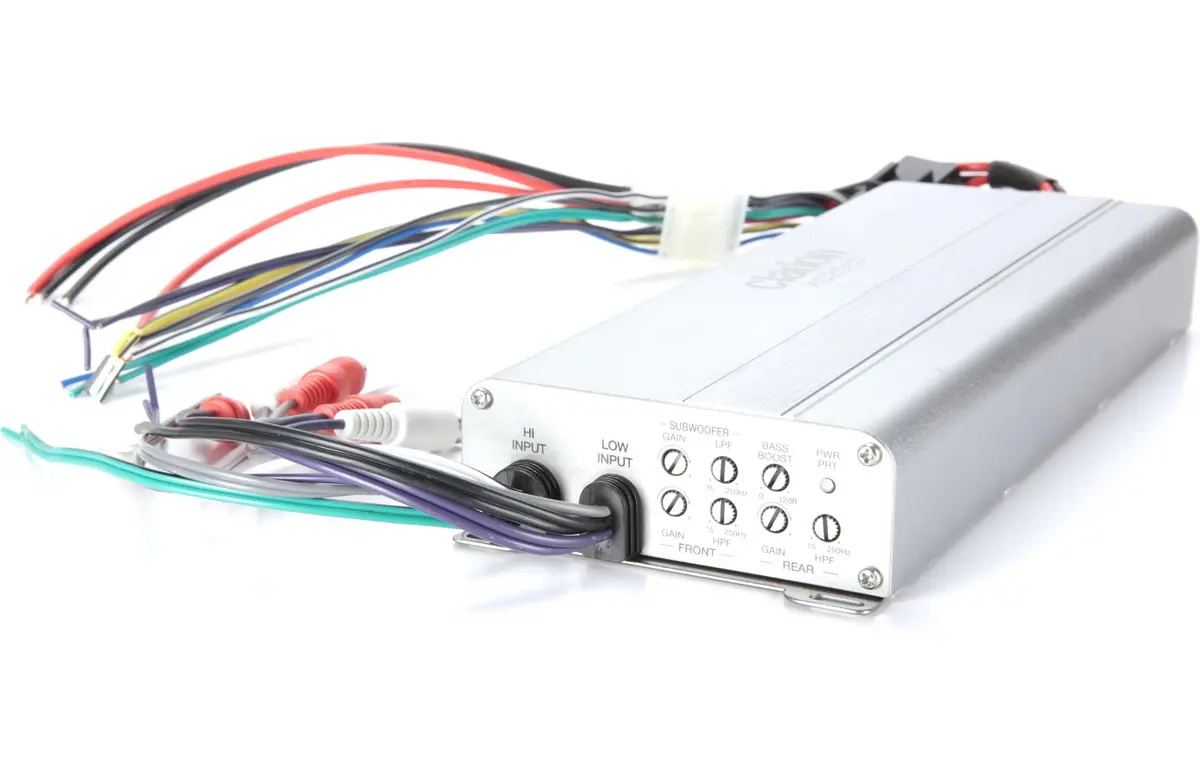

- 5-channel amplifier
- 50 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
- CEA-2006 compliant
- Class D amp technology
- double-sided conformal-coated circuit board — suitable for power sports and marine applications (not waterproof)
- corrosion-resistant nickel-coated connections
- built-in ground loop isolation circuitry reduces input noise
- variable high-pass filters on front and rear channels (15-250 Hz, 12 dB/octave)
- variable low-pass filters on sub channel (35-250 Hz, 12 dB/octave)
- variable bass boost on sub channel (0-12 dB at 50 Hz)
- preamp and speaker-level inputs
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- fuse rating: 40A x 2
- dimensions: 12-1/4″W x 1-5/8″H x 4-3/8″D
- warranty: 1 year
Features
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 35-250 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 15-250 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Bass Boost | 0-12 dB |
| Bass Boost Frequency | 50 Hz |
| Fan Cooled | No |
| Fuse Rating | 80 |
| Speaker Level Inputs | Harness |
| Preamp Outputs | No |
| Width (inches) | 12-1/4 |
| Height (inches) | 1-5/8 |
| Depth (inches) | 4-3/8 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
Specifications
| RMS Power Output (Watts x Channels) | 50 x 4 300 x 1 |
| Peak Power Output (Watts x Channels) | — |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Best Frequency Response | 20-30k Hz |
| THD at Rated RMS Power | 1% |
| Signal to Noise Ratio | 70 dB |
| Input Voltage | 14.4v |
