Description
Clarion M508 Marine Receiver + CMS-651-CWB x2 Pair 6.5″ Marine Speakers
Receiver Highlights
- 1 Year Warranty
- Water Resistant
- High Visibility Oversized LCD Display
- Built-In Bluetooth
- USB Connectors
- MP3 / WMA USB File Playback
- AM / FM
- USB / iPod
- 4-Channel / 2V RCA Outputs
Receiver Specifications
| TUNER | |
|---|---|
| Frequency bands | FM/AM/Weather Band |
| FM Tuner | |
| Frequency Range | USA 87.9 ～ 107.9 MHz (0.2 MHz STEP) |
| Europe 87.50 ～ 108.00 MHz (0.05 MHz STEP) | |
| Australia 87.50 ～ 108.00 MHz (0.01 MHz STEP) | |
| Other Countries 87.50 ～ 108.00 MHz (0.05 MHz STEP) | |
| AM Tuner | |
| Frequency Range | USA 530 ～ 1710 kHz (10 kHz STEP) |
| Europe 531 ～ 1602 kHz (9 kHz STEP) | |
| Australia 531 ～ 1629 kHz (9 kHz STEP) | |
| Other Countries 531 ～ 1629 kHz (9 kHz STEP) | |
| Weather Band | |
| NOAA Frequency Range | 162.400MHz ～162.550MHz |
| Channel 1 : 162.400MHz | |
| Channel 2 : 162.425MHz | |
| Channel 3 : 162.450MHz | |
| Channel 4 : 162.475MHz | |
| Channel 5 : 162.500MHz | |
| Channel 6 : 162.525MHz | |
| Channel 7 : 162.550MHz | |
| Bluetooth | |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| AptX | |
| AVRCP (AV Remote Control Profile) | |
| HFP (Hands Free Profile) | |
| SPP (Serial Port Profile) | |
| SSP (Simple Secure Pairing) | |
| AUDIO | |
| Maximum Power Output | 50 W × 4 |
| Low Pass Filter (Subwoofer) | ●80 / 120 / 180 (W/O Full Range) |
| GENERAL | |
| Dimensions (W × H × D) (Inches) | 7 1/8 × 2 × 6 1/2 |
| Dimensions (W × H × D) (mm) | 180 × 50 × 165 |
| Low Consumption Mode as Power Off | <50mA when POWER=OFF (Need < 3mA when ACC=OFF) |

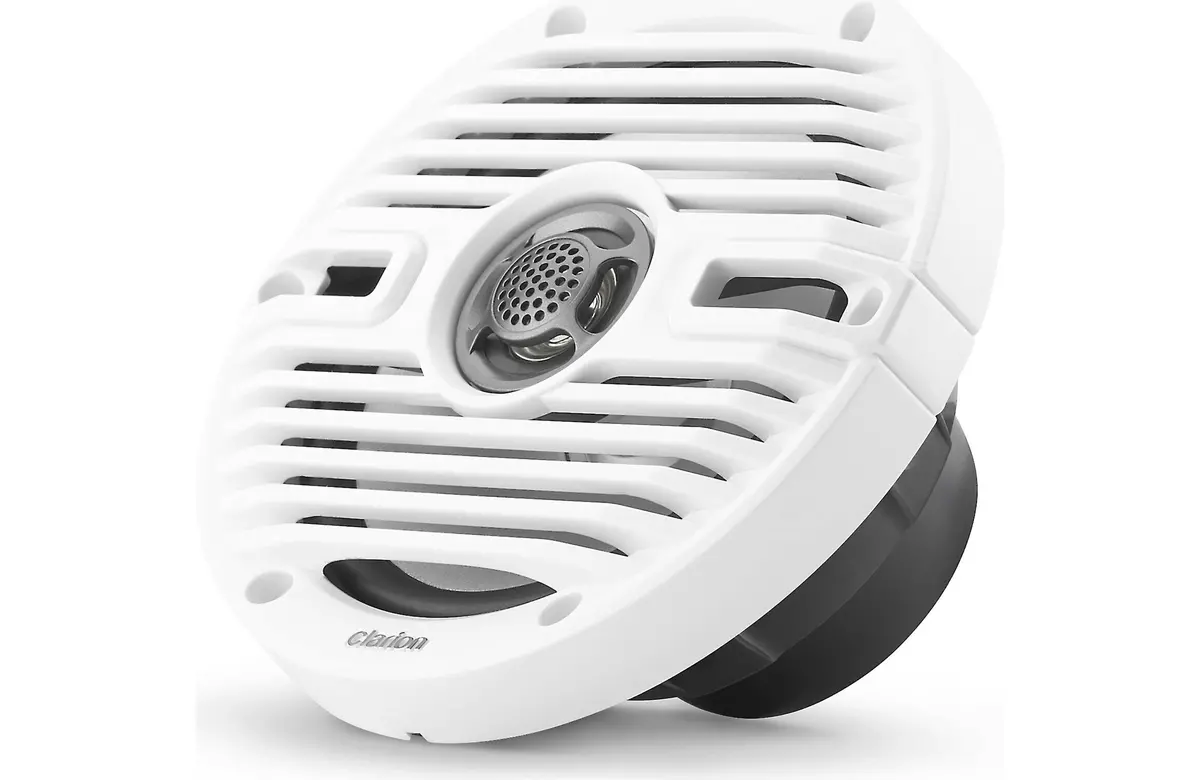

Speaker Highlights
- Includes White & Black Classic Grilles
- Salt Sun Certified
- 30W RMS power handling, perfect for source unit-powered systems
- Bridge-mounted, ½ inch (13 mm) balanced-dome, polymer tweeter with neodymium magnet and ferrofluid cooling
- Standard cutout size and mounting hole for easy retrofitting
Speaker Specifications
| Sensitivity | 87 dB at 1 watt |
| Frequency Response | 55 – 20k Hz |
| Max RMS Power Handling | 30 |
| Peak Power Handling (Watts) | 60 |
| Impedance (Ohms) | 4 |
| Top-mount Depth (Inches) | 2 ¹¹⁄₁₆ |
| Bottom-mount Depth (Inches) | N/A |
| Cutout Diameter or Length (inches) | 5 |
