Description
Highlights
- Digital media receiver with 10.1″ capacitive touchscreen display
- Single-DIN chassis
- Built-in AM/FM tuner
- Bluetooth for hands-free calling and audio streaming
- Plays WAV, MP3, WMA, and FLAC files
- Multicolor display
- Apple CarPlay compatible
- Android Auto compatible
- Front panel button to activate Siri or Google Assistant
Features

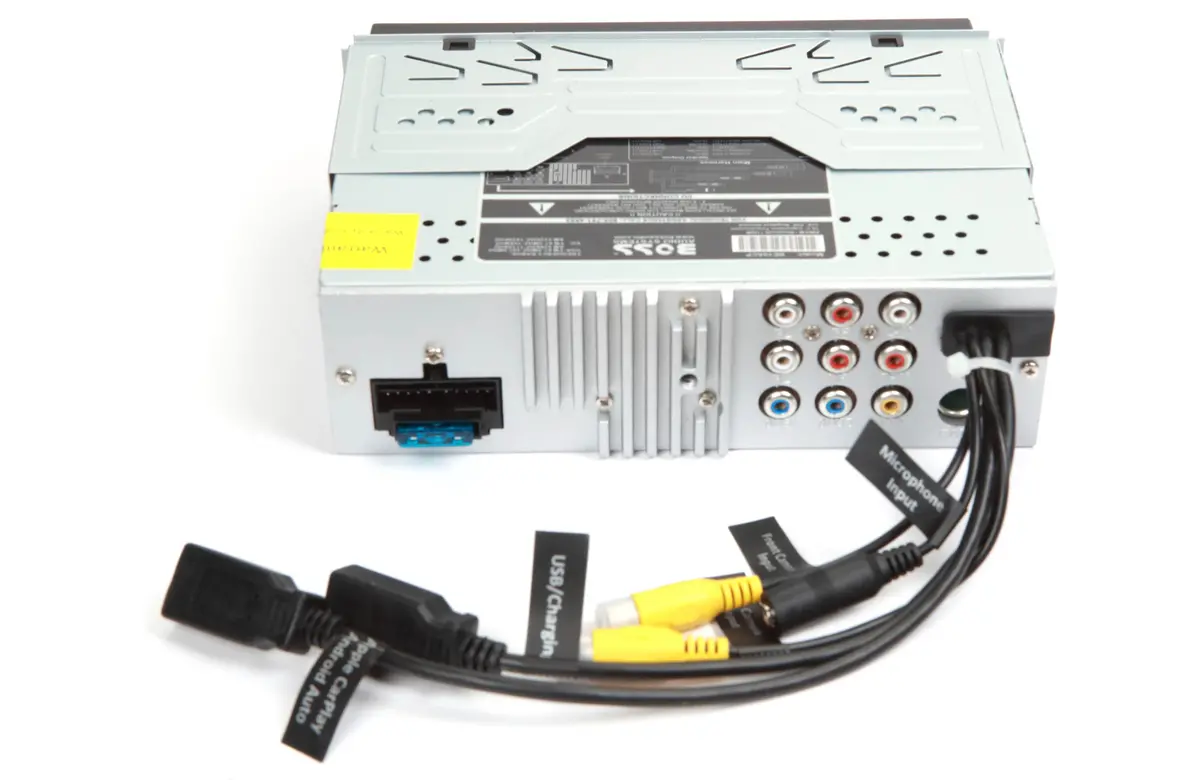

- Inputs: two rear USB inputs, rear A/V input (RCA), two camera inputs
- Outputs: 6-channel preamp outputs (4-volt front, rear, sub)
- Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- Built-in internal amp (20 watts RMS/85 peak x 4 channels)
- 10-band EQ
- Compatible with most factory steering wheel audio controls (adapter required)
- Warranty: 3 years
| AUX Input | RCA (rear) |
| Audio/video Input | RCA (rear) |
| USB Input | Rear (2) |
| USB Port Power | 1.5A |
| Backup Camera Input | Yes |
| Second Camera Input | Yes |
| CarPlay | Yes |
| Android Auto | Yes |
| Siri Control | CarPlay only |
| Alexa Voice Control | No |
| Android Control | Yes |
| Memory Card Slot | USB, microSD |
| Bluetooth Compatible | Built-in |
| Satellite Radio Ready | No |
| HD Radio | No |
| Navigation | Optional |
Specifications
| RMS Power (CTA-2006) | N/A |
| RMS Power (Manufacturer) | 20 watts |
| Peak Output | 85 watts |
| RMS Power Bandwidth | 1kHz |
| Preamp Outputs | 6-channel |
| Sub Preamp Outputs | Yes |
| Switchable Rear Preamp Outputs | No |
| Video Screen | Yes |
| Navigation App Compatible (iOS) | Apple, Google, Waze |
| Navigation App Compatible (Android) | Google, Waze |
| Preamp Voltage | 4 volts |
| Screen Size | 10.1 |
| Key Button Color | Variable |
| EQ Bands | 10 |
| Wireless Remote | No |
| Steering Wheel Control Compatible | Adapter required |
| Parts Warranty | 3 Years |
| Labor Warranty | 3 Years |
