BIM Construction Alignment Targets: RS30, RS31, RS40, RS41

Description

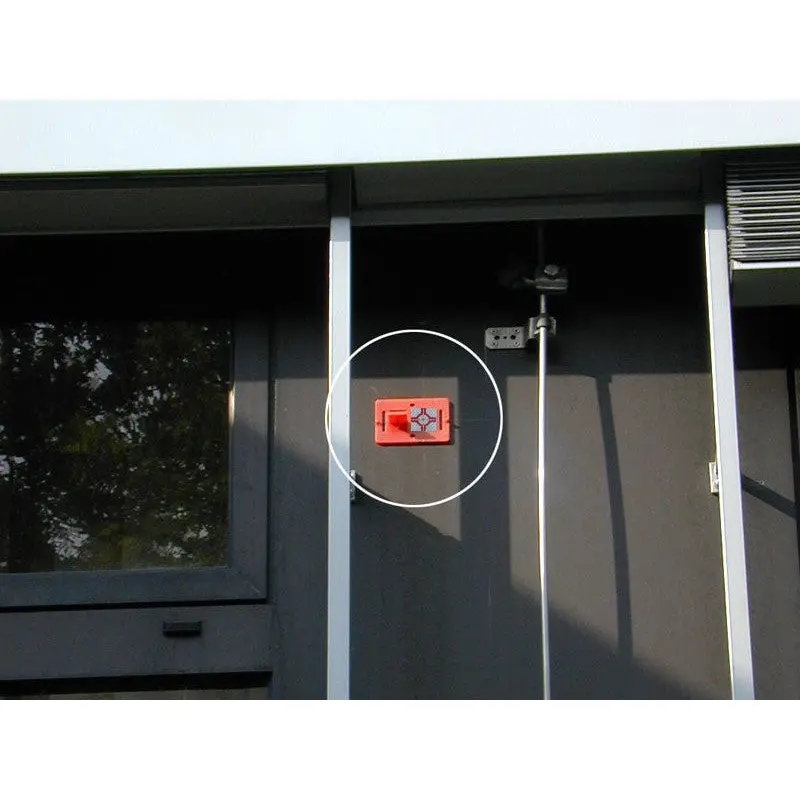

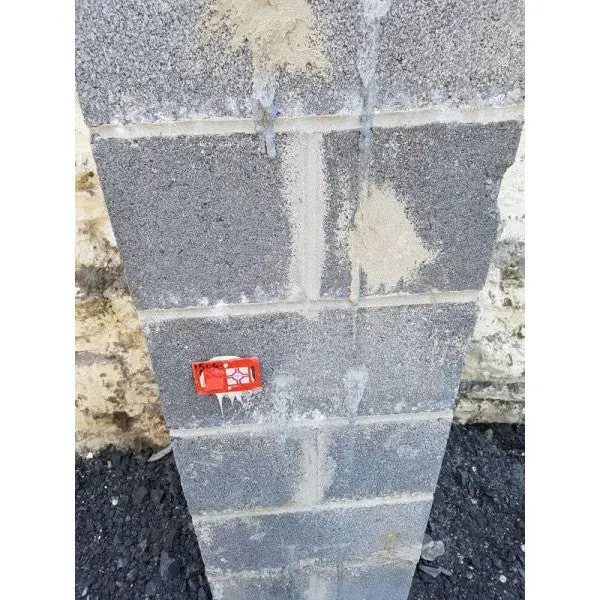

RS30 & RS31* (*self-adhesive)

• Perfect reference points for BIM
• A fixed point for all surveying instruments currently used
• Quick positioning using a Total Station
• The surveyor’s measuring stick can be attached for measuring subsidence
• Ideal for industrial construction and hall construction
• Ensures heights and axes are securely marked
• Temperature and UV-resistant
• Crosshairs are imprinted on the backing plate under the exact center of the reflective target to ensure the survey point is durably marked. If the reflective target is damaged at any point, it can easily be replaced, and the original survey point can be restored quickly, easily, and cheaply.
• Can be mounted even on difficult surfaces
• The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

RS40 & RS41* (*self-adhesive) Survey markers with reflective targets are exclusively recommended for carrying out distance measurements using a tachymeter or total station. Survey markers with crosshairs, and without reflective targets, are available for use with leveling instruments, theodolites, and construction lasers.
